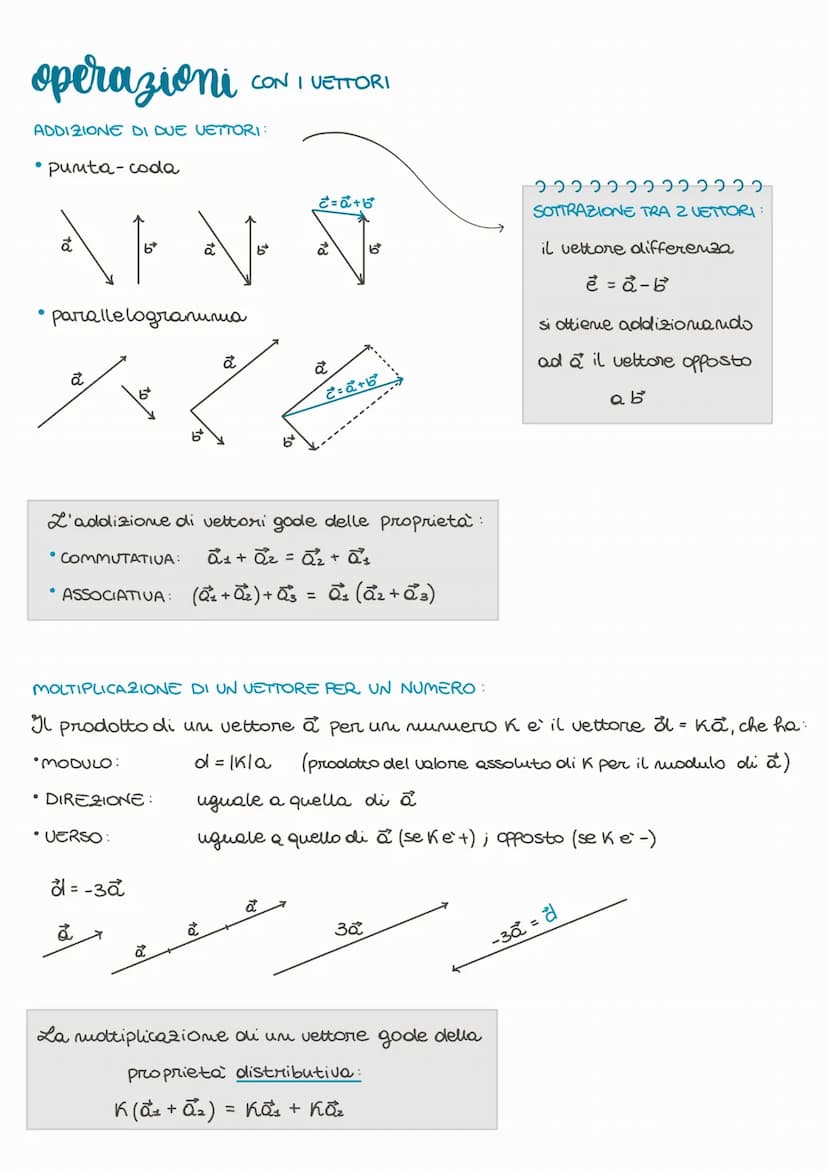

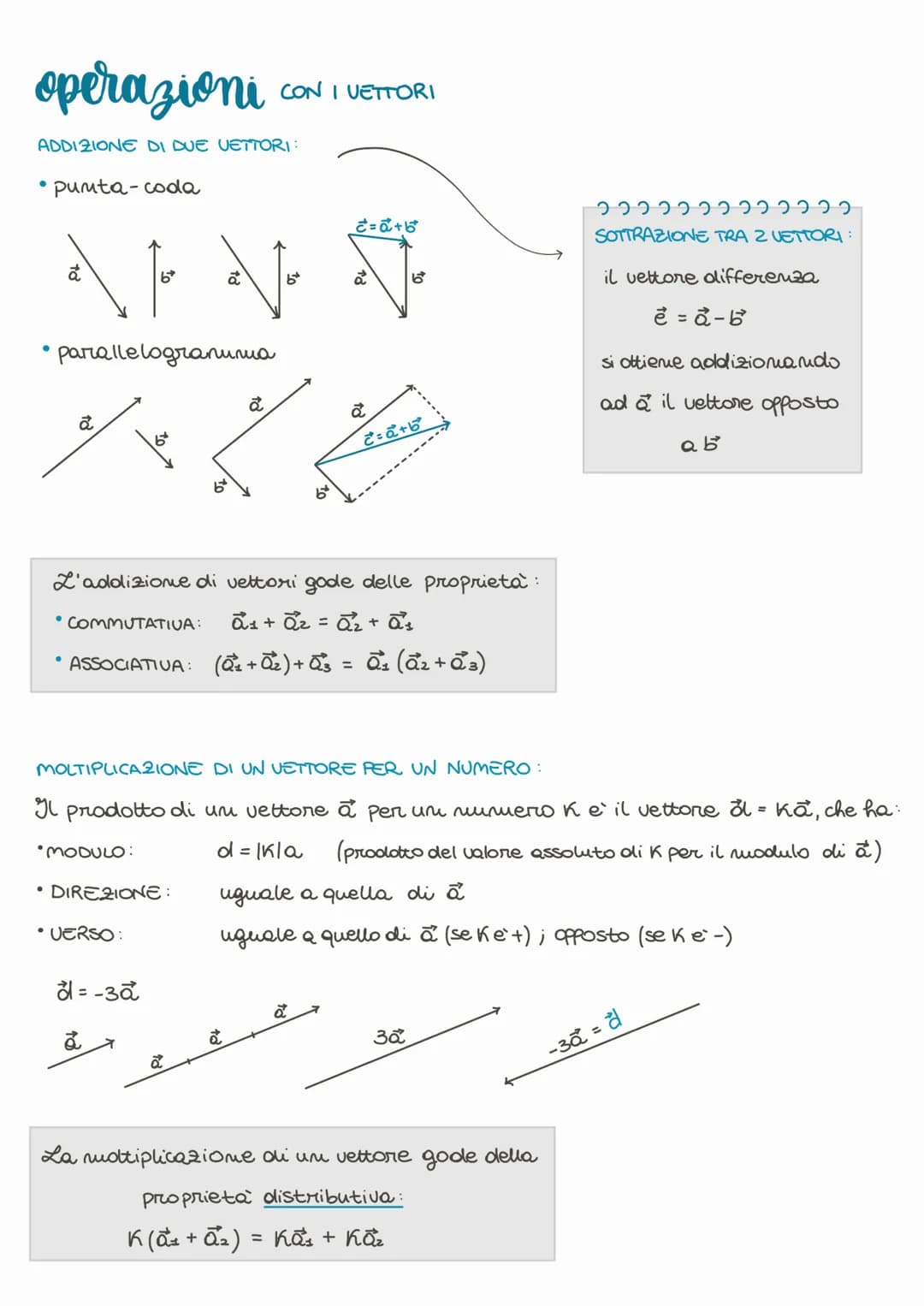

Vector Operations and Methods

This section covers the fundamental operations performed with vectors, including addition and multiplication methods.

Definition: Vector addition can be performed using either the tip-to-tail method or the parallelogram method, both yielding the same result.

Example: When adding vectors A and B, the parallelogram method involves drawing vectors from the same initial point and completing the parallelogram to find the resultant.

Highlight: Vector operations follow important properties:

• Commutative property: a₁ + a₂ = a₂ + a₁
• Associative property: $a₁ + a₂$ + a₃ = a₁ + $a₂ + a₃$

Vocabulary:

• Scalar multiplication: Multiplying a vector by a number to change its magnitude
• Vector subtraction: Adding the negative of a vector

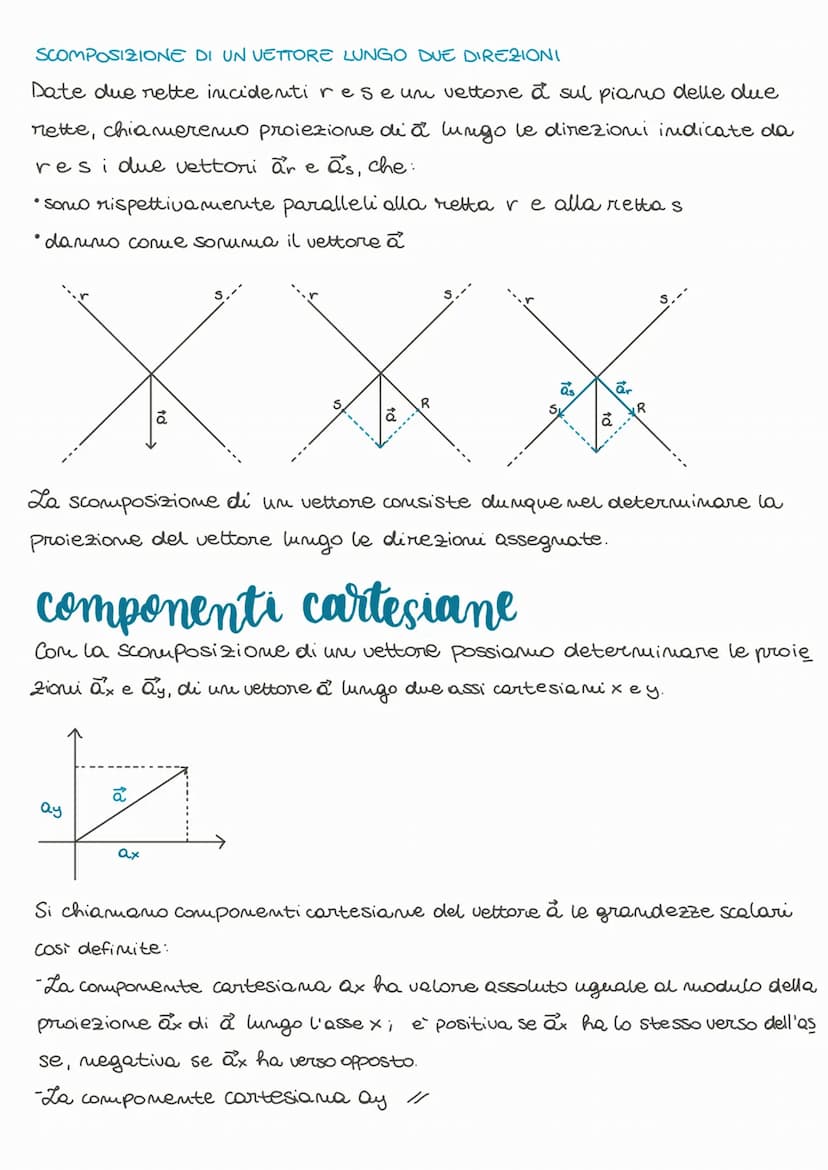

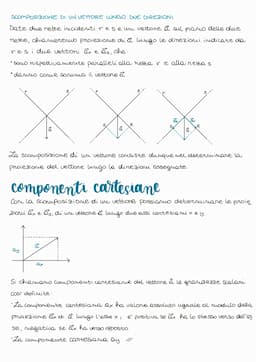

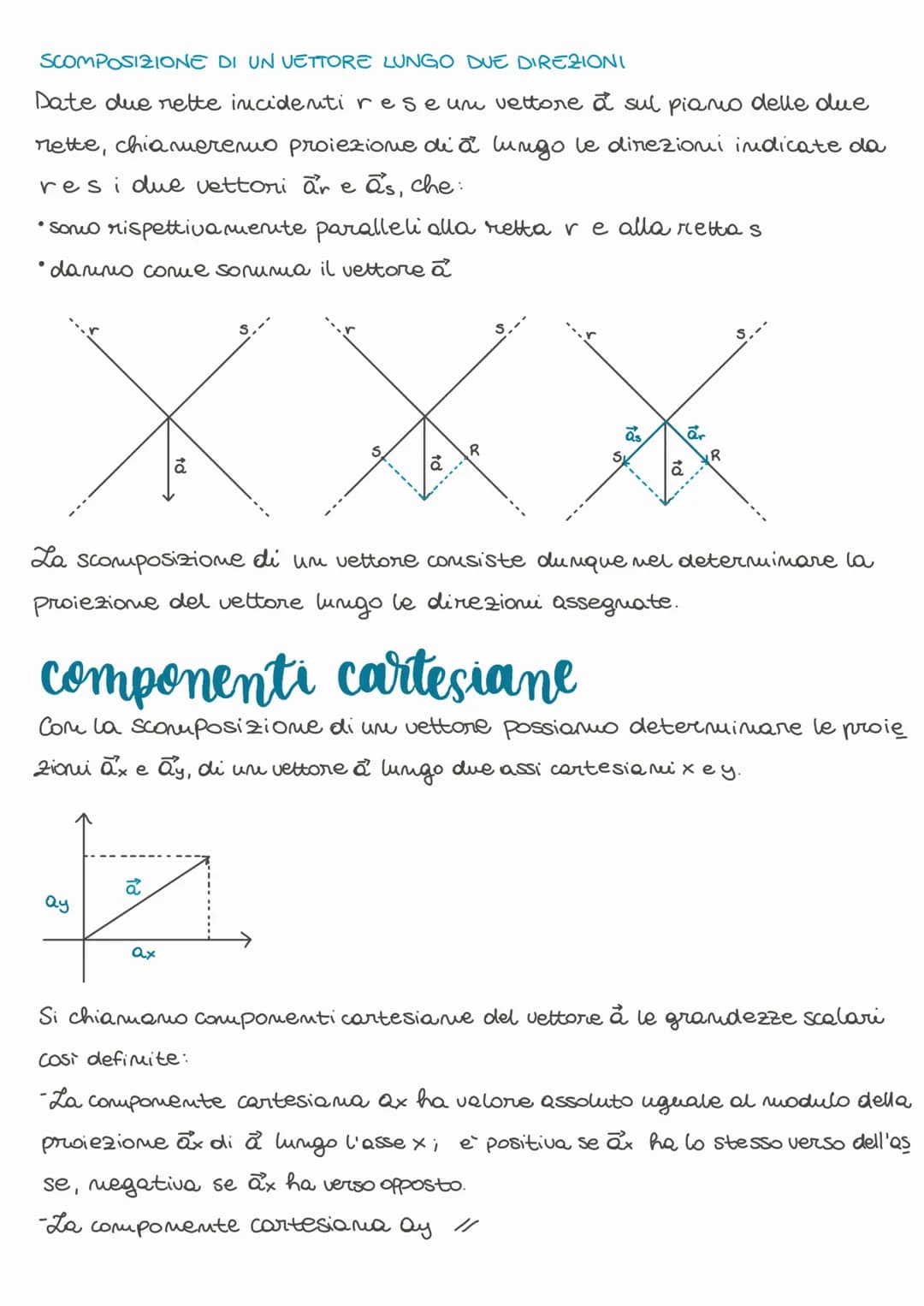

Vector Components and Projections

This section explains how vectors can be broken down into components along different directions, particularly in Cartesian coordinates.

Definition: Vector projection involves breaking down a vector into components along specified directions, typically along perpendicular axes.

Example: A vector a can be decomposed into ax and ay components, where ax represents the horizontal component and ay the vertical component.

Highlight: The original vector can be reconstructed from its components using the Pythagorean theorem: a = √(ax² + ay²)

Vocabulary:

• Cartesian components: The perpendicular components of a vector along coordinate axes
• Vector projection: The shadow cast by a vector onto a direction

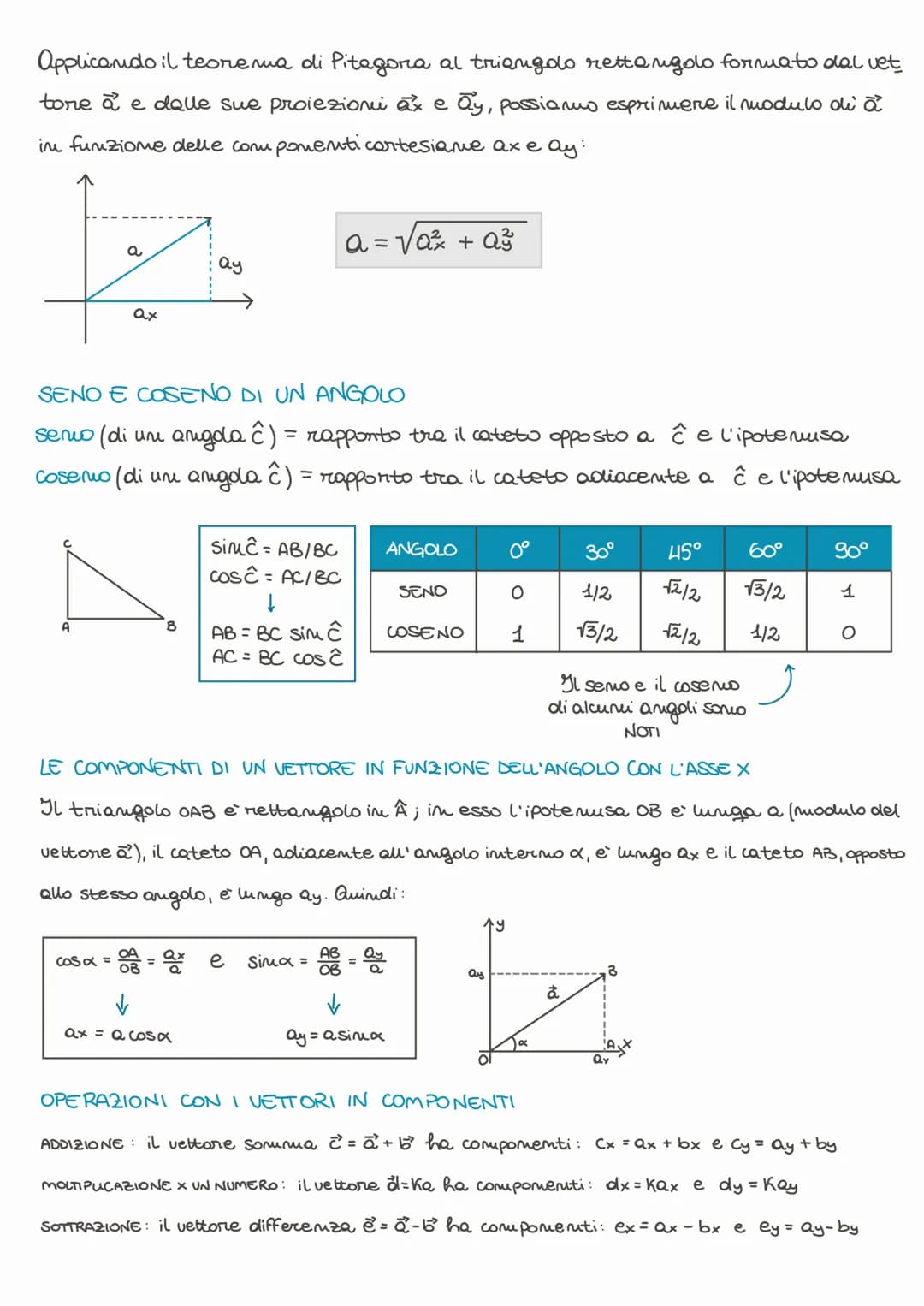

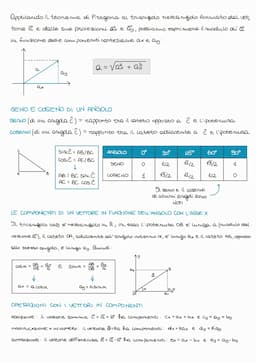

Trigonometric Relations in Vector Analysis

This section details the relationship between vector components and trigonometric functions.

Definition: The sine and cosine of an angle are defined as ratios of sides in a right triangle, crucial for vector component calculations.

Example: For a vector making an angle α with the x-axis:

• ax = a cos α (x-component)
• ay = a sin α (y-component)

Highlight: Special angle values (30°, 45°, 60°, 90°) have standard sine and cosine values that are frequently used in vector calculations.

Vocabulary:

• Component form: Expression of a vector in terms of its x and y components
• Trigonometric functions: Mathematical relationships used to determine vector components

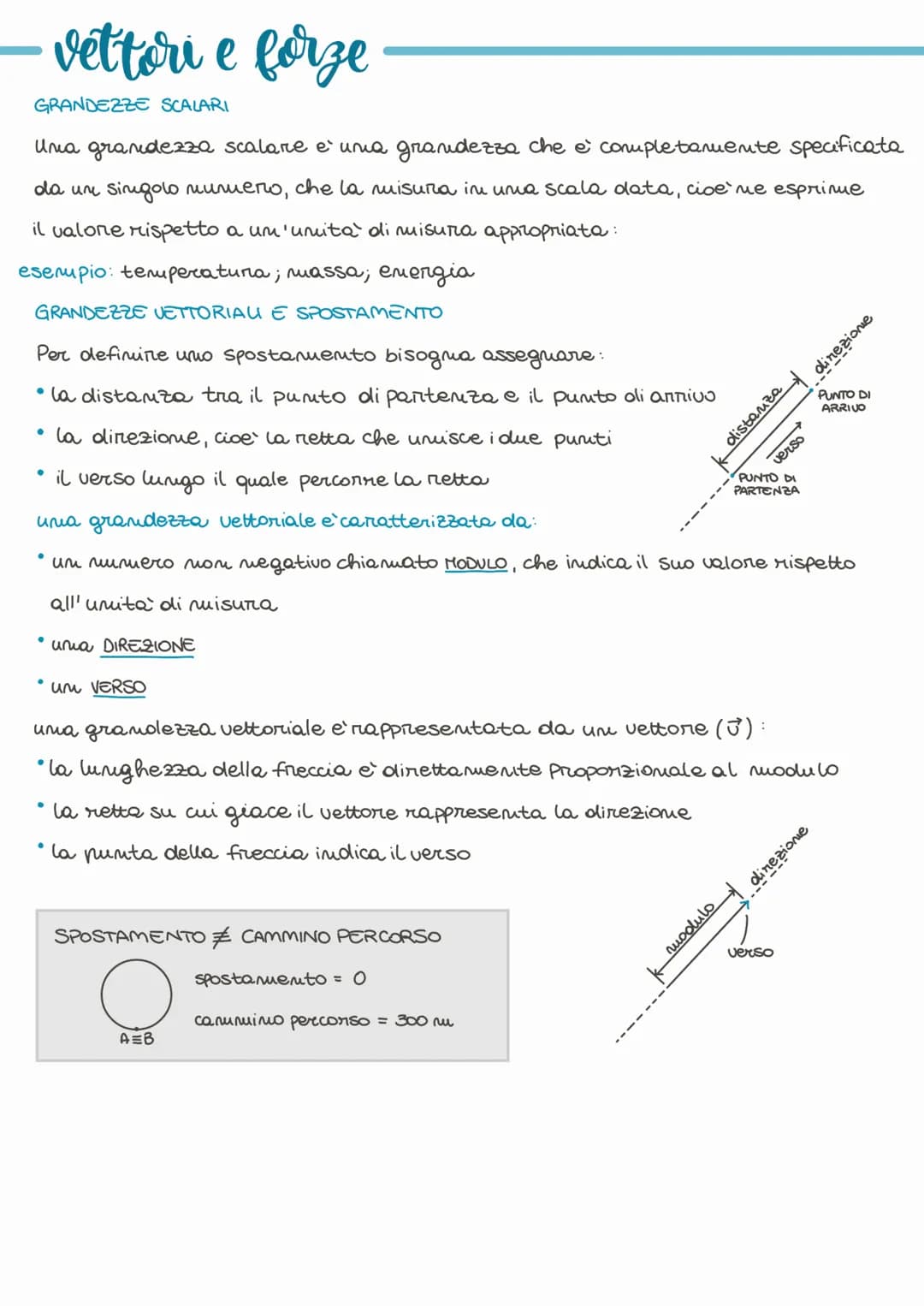

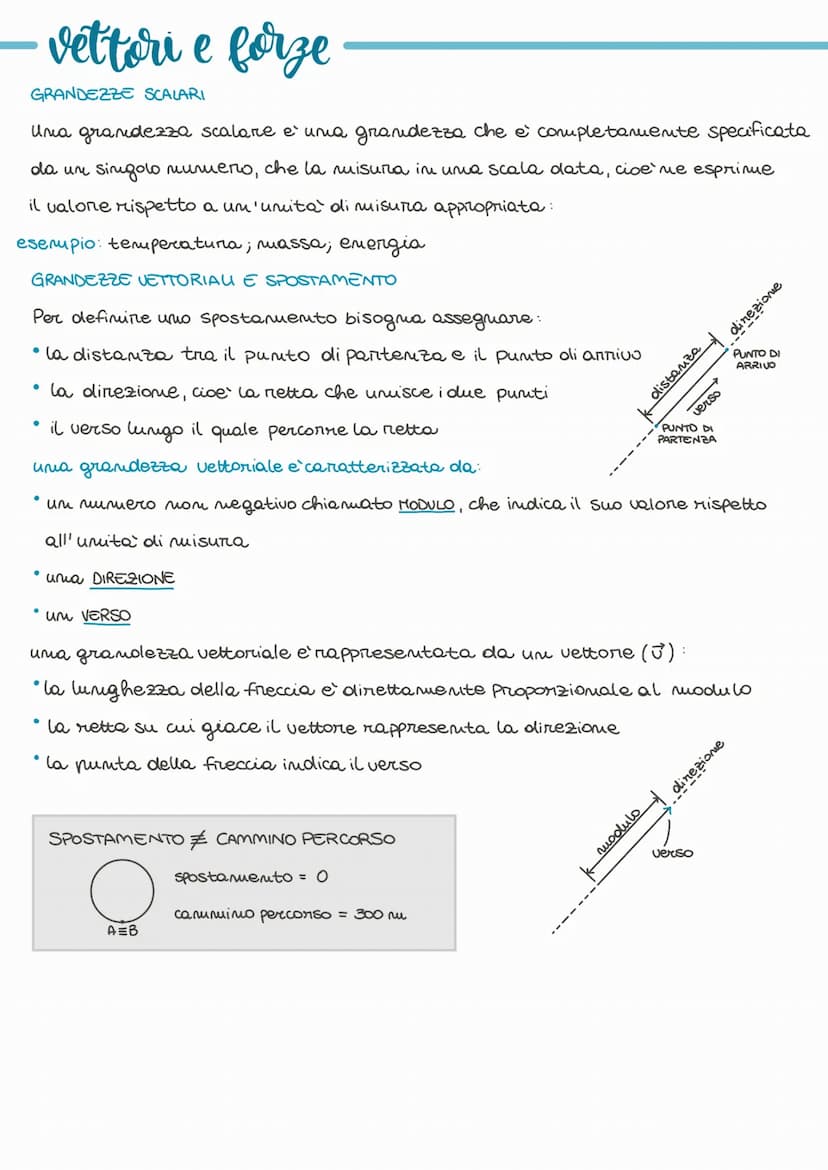

Understanding Scalar and Vector Quantities

This section introduces the fundamental distinction between scalar and vector quantities in physics, providing essential groundwork for understanding physical measurements and operations.

Definition: A scalar quantity is completely specified by a single number with its unit of measurement, such as temperature or mass.

Definition: A vector quantity requires both magnitude and direction for complete specification, represented by an arrow where length indicates magnitude and direction shows orientation.

Example: A displacement vector requires three elements: distance between start and end points, direction of motion, and sense of motion along that direction.

Highlight: The difference between displacement and path length is crucial - displacement can be zero even when the path length is significant, as demonstrated by circular motion.

Vocabulary:

• Modulus: The magnitude or size of a vector
• Direction: The orientation of the vector in space
• Sense: The specific way the vector points along its direction
