Atomic Structure and Models

This section explores the evolution of atomic models, focusing on Rutherford's atomic model and its significance.

Key concepts:

• Atoms as fundamental units of matter
• Development from indivisible particle concept to more complex models
• Rutherford's atomic model resembling a miniature solar system

Definition: Atom - the basic unit of matter, consisting of a dense nucleus surrounded by electrons

Atomic components:

• Nucleus: Contains positively charged protons and neutral neutrons
• Electrons: Negatively charged particles orbiting the nucleus

Highlight: If an atom were enlarged to the size of a solar system, the nucleus would be Earth-sized and electrons would orbit at Pluto's distance

Example: The Rutherford model was based on experimental evidence from alpha particle scattering

Electrostatic Interactions

This page covers the fundamental principles of electrostatic forces between charged particles.

Key points:

• Like charges repel, opposite charges attract
• Electrostatic forces maintain atomic stability
• Charge is measured in Coulombs $C$

Vocabulary: Coulomb $C$ - the SI unit of electric charge

Charge properties:

• Proton charge: +1.6 x 10^-19 C
• Electron charge: -1.6 x 10^-19 C

Highlight: The principle of conservation of charge states that charge cannot be created or destroyed, only transferred

Charge transfer mechanisms:

1. Friction $triboelectric effect$
2. Contact $conduction$
3. Induction $temporary charge separation$

Example: Rubbing a balloon on hair transfers electrons, giving the balloon a negative charge

Conductors, Insulators, and Electroscopes

This section discusses different material properties related to charge transfer and introduces the electroscope as a tool for detecting electric charge.

Material classifications:

1. Conductors: Allow easy electron movement $e.g., metals$
2. Insulators: Resist electron transfer $e.g., rubber, plastic$

Definition: Conductor - a material that allows electric charge to flow freely

Definition: Insulator - a material that impedes the flow of electric charge

Electroscope function:

• Device for detecting and measuring electric charge
• Consists of a metal knob connected to thin metal leaves
• Leaves separate when charged due to electrostatic repulsion

Example: Bringing a charged object near an electroscope's knob induces charge separation, causing the leaves to diverge

Coulomb's Law and Electrostatic Force

This page introduces Coulomb's law and the quantitative description of electrostatic forces between charged particles.

Coulomb's law: F = k$q1 * q2$ / r^2

Where:

• F is the electrostatic force $in Newtons$
• k is Coulomb's constant $8.99 x 10^9 N*m^2/C^2$
• q1 and q2 are the magnitudes of the charges $in Coulombs$
• r is the distance between the charges $in meters$

Highlight: The electrostatic force is inversely proportional to the square of the distance between charges

Key points:

• Force can be attractive $opposite charges$ or repulsive $like charges$
• Magnitude depends on charge sizes and distance
• Vector quantity $has both magnitude and direction$

Example: Calculate the force between two charges of +5 μC and -3 μC separated by 4 cm

Electric Fields

This section introduces the concept of electric fields as a way to describe the influence of electric charges on space around them.

Key concepts:

• Electric field represents the effect of a source charge on a test charge
• Field strength depends on source charge magnitude and distance
• Visualized using field lines radiating from positive charges or converging on negative charges

Definition: Electric field - a region of space around a charged particle or object where electric forces can be detected

Electric field strength formula: E = F / q = k$Q$ / r^2

Where:

• E is the electric field strength $N/C$
• F is the force on a test charge
• q is the test charge
• Q is the source charge
• r is the distance from the source charge

Highlight: Electric fields extend to infinity but become weaker with increasing distance

Example: Earth's gravitational field is analogous to an electric field, influencing objects with mass instead of charge

Electric Field Visualization and Applications

This final section explores ways to visualize electric fields and their practical applications.

Field visualization methods:

• Field lines: Show direction and relative strength of the field
• Equipotential surfaces: Areas of constant electric potential

Vocabulary: Equipotential surface - a surface where the electric potential is constant at all points

Applications of electric fields:

1. Electrostatic precipitators for air purification
2. Photocopiers and laser printers
3. Particle accelerators in physics research

Example: In a parallel plate capacitor, the electric field between the plates is uniform and can be calculated using E = V/d, where V is the voltage and d is the plate separation

Highlight: Understanding electric fields is crucial for many modern technologies, from smartphones to medical imaging devices

This comprehensive guide provides a solid foundation in electromagnetism and atomic structure for high school physics students preparing for their Fisica Maturità 2024 exam.

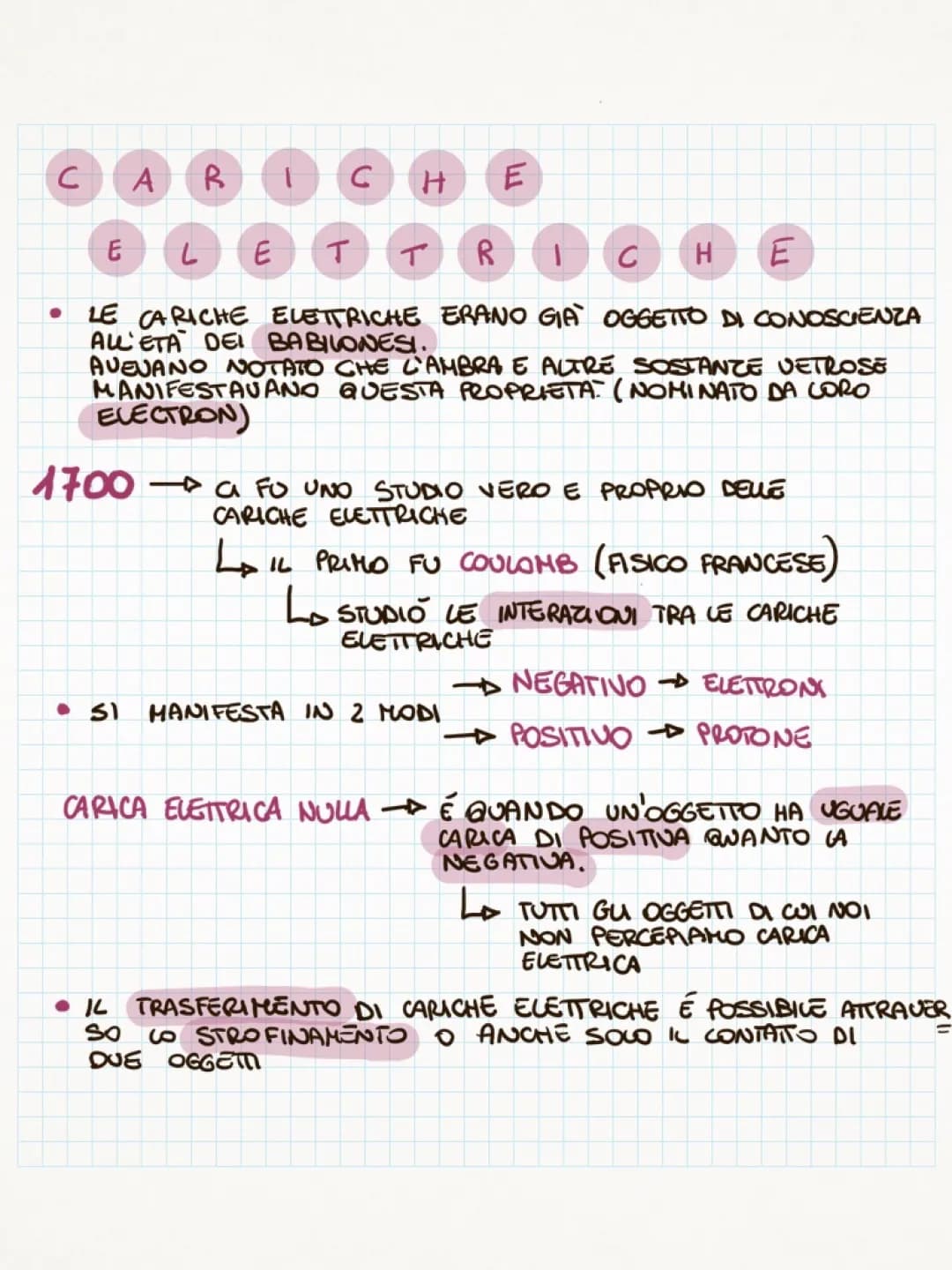

History of Electric Charges

The study of electric charges dates back to ancient times, with significant scientific advances occurring in the 18th century.

Key developments:

• Ancient Babylonians observed electrostatic properties in amber and glass
• Term "electron" comes from Greek word for amber
• Systematic study of electric charges began in the 1700s
• French physicist Coulomb pioneered research on charge interactions

Vocabulary: Electron - negatively charged subatomic particle

Highlight: Objects can gain or lose electric charge through friction or contact with other objects

Electric charge properties:

• Exists as positive $protons$ or negative $electrons$
• Neutral objects have equal positive and negative charges
• Charge can be transferred between objects by rubbing or contact

Example: Rubbing a plastic pen on wool can transfer electrons, giving the pen a negative charge
