Scopri Come Calcolare la Forza di Attrito e Altre Sorprese!

Vedi

Scopri Come Calcolare la Forza di Attrito e Altre Sorprese!
user profile picture

Anna Lani

@annalani

·

57 Follower

Segui

Questo documento fornisce una panoramica dettagliata delle principali forze in fisica, incluse le formule e i concetti chiave.

  • Analizza la forza-peso, la forza elastica, la forza di attrito statico e la forza di attrito dinamico
  • Presenta le formule dirette e inverse per ciascuna forza
  • Spiega i coefficienti e le costanti rilevanti per ogni tipo di forza
  • Include unità di misura e simboli utilizzati nelle equazioni

24/9/2022

4610

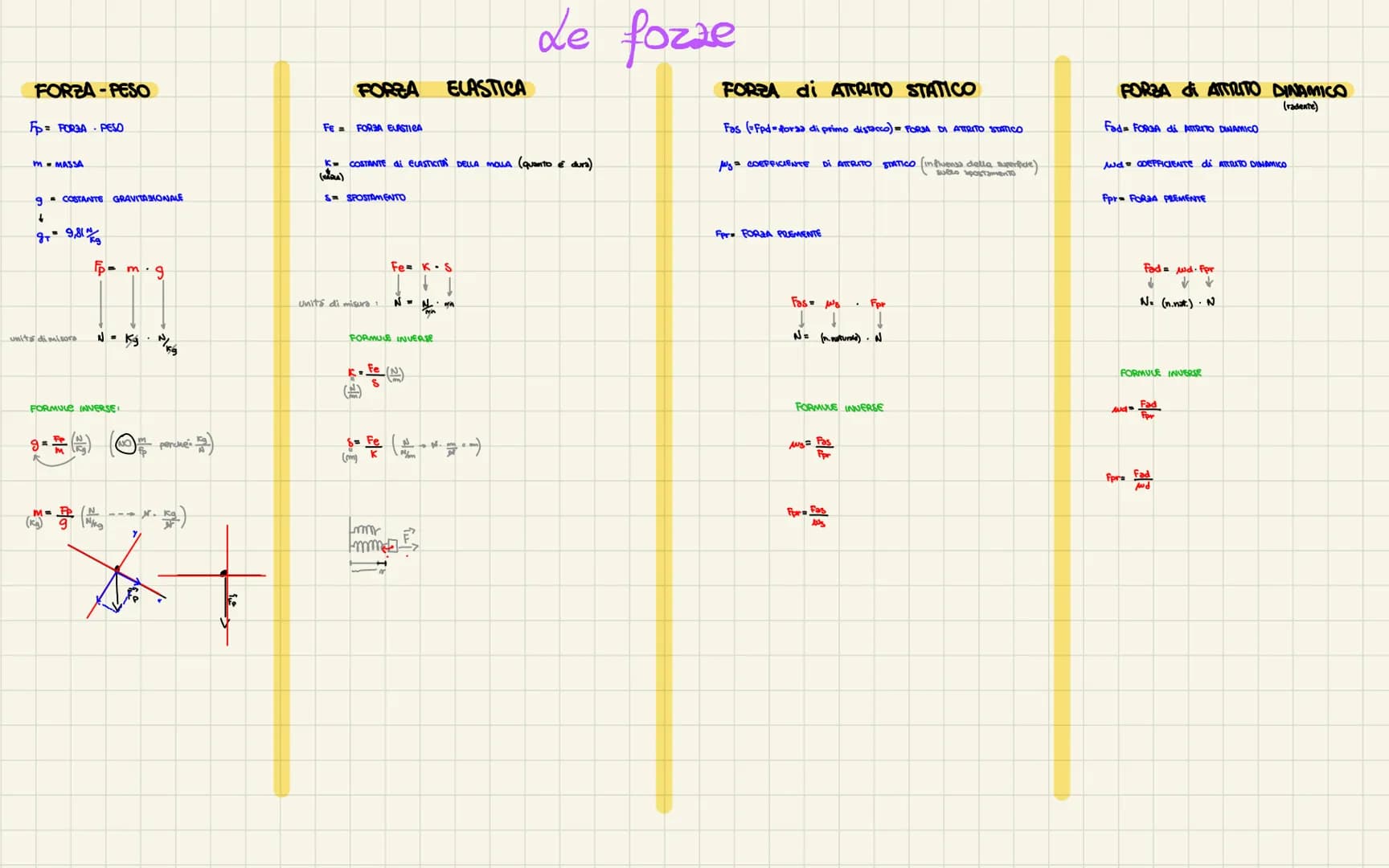

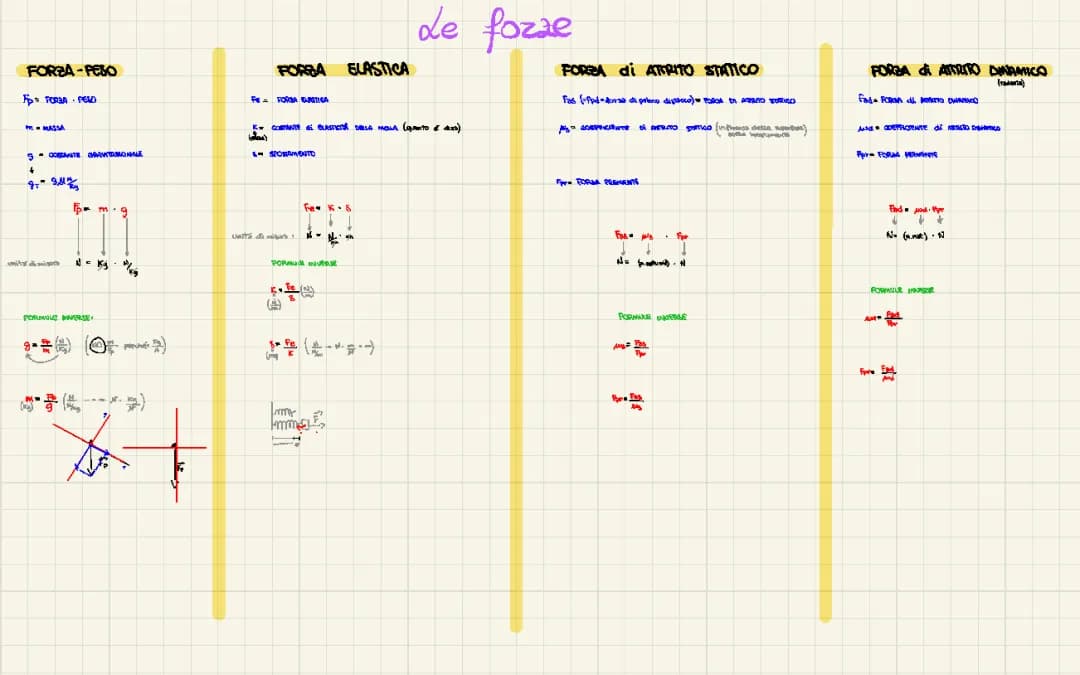

FORZA-PESO Fp= FORZA-PESO m-MASSA 9 COSTANTE GRAVITASIONALE 4 97 9,81 units di misora FORMULE INVERSE g== (1/1) Fp= m. g (K₂) (N. NIKO perch

Vedi

Elastic Force (Forza Elastica)

This section delves into the concept of elastic force, which is the force exerted by a spring or elastic material when it is stretched or compressed. The forza elastica formula is presented as Fe = k * s, where Fe is the elastic force, k is the spring constant (a measure of the spring's stiffness), and s is the displacement or change in length of the spring.

Definition: Elastic force (Forza Elastica) is the force exerted by a spring or elastic material when it is stretched or compressed.

The spring constant k is a crucial parameter that determines how much force is needed to stretch or compress the spring. It is a measure of the spring's stiffness or resistance to deformation.

Vocabulary: The spring constant (k) is a measure of a spring's stiffness, indicating how much force is required to stretch or compress it.

The unit of measurement for elastic force is Newtons (N), consistent with the units of the formula components: spring constant (N/m) multiplied by displacement (m) results in force (N).

The forza elastica formule inverse are also provided:

  1. k = Fe / s (to find the spring constant when elastic force and displacement are known)
  2. s = Fe / k (to find the displacement when elastic force and spring constant are known)

These inverse formulas are particularly useful for solving problems where different variables are unknown.

Example: If a spring with a spring constant of 100 N/m is stretched by 0.1 m, the elastic force would be: Fe = 100 N/m * 0.1 m = 10 N

The concept of elastic force is closely related to Hooke's Law, which states that the force exerted by a spring is directly proportional to its displacement from equilibrium, within the elastic limit.

Highlight: Hooke's Law states that the force exerted by a spring is directly proportional to its displacement, within the elastic limit.

Understanding elastic force is crucial in many applications, from the design of mechanical systems to the study of material properties. It forms the basis for understanding more complex systems involving springs and elastic materials.

FORZA-PESO Fp= FORZA-PESO m-MASSA 9 COSTANTE GRAVITASIONALE 4 97 9,81 units di misora FORMULE INVERSE g== (1/1) Fp= m. g (K₂) (N. NIKO perch

Vedi

Static Friction Force (Forza di Attrito Statico)

This section introduces the concept of static friction force, which is the force that prevents an object at rest from starting to move. The formula for static friction force is presented as Fas = μs * Fpr, where Fas is the static friction force, μs is the coefficient of static friction, and Fpr is the normal force (the force perpendicular to the surface).

Definition: Static friction force (Forza di Attrito Statico) is the force that prevents an object at rest from starting to move relative to the surface it's in contact with.

The coefficient of static friction (μs) is a dimensionless quantity that depends on the nature of the two surfaces in contact. It represents the ratio of the maximum static friction force to the normal force.

Vocabulary: The coefficient of static friction (μs) is a measure of the resistance to motion between two surfaces that are not moving relative to each other.

The unit of measurement for static friction force is Newtons (N), consistent with the normal force (also measured in Newtons). The coefficient of static friction is dimensionless.

The inverse formulas for static friction are also provided:

  1. μs = Fas / Fpr (to find the coefficient of static friction when static friction force and normal force are known)
  2. Fpr = Fas / μs (to find the normal force when static friction force and coefficient of static friction are known)

Example: If an object experiences a normal force of 100 N and the coefficient of static friction between the object and the surface is 0.5, the maximum static friction force would be: Fas = 0.5 * 100 N = 50 N

It's important to note that the static friction force can vary from zero up to this maximum value, depending on the applied force trying to move the object.

Highlight: The static friction force opposes the impending motion of an object, and its magnitude can vary up to a maximum value determined by the coefficient of static friction and the normal force.

Understanding static friction is crucial in many real-world applications, from designing non-slip surfaces to analyzing the stability of structures. It plays a significant role in our everyday interactions with objects and surfaces.

FORZA-PESO Fp= FORZA-PESO m-MASSA 9 COSTANTE GRAVITASIONALE 4 97 9,81 units di misora FORMULE INVERSE g== (1/1) Fp= m. g (K₂) (N. NIKO perch

Vedi

Dynamic Friction Force (Forza di Attrito Dinamico)

This section explores the concept of dynamic friction force, also known as kinetic friction. This is the force that resists the motion of an object sliding along a surface. The formula for dynamic friction force is presented as Fad = μd * Fpr, where Fad is the dynamic friction force, μd is the coefficient of dynamic friction, and Fpr is the normal force.

Definition: Dynamic friction force (Forza di Attrito Dinamico) is the force that resists the motion of an object sliding along a surface.

The coefficient of dynamic friction (μd) is typically less than the coefficient of static friction for the same pair of surfaces. This explains why it's often easier to keep an object moving than to start it moving from rest.

Vocabulary: The coefficient of dynamic friction (μd) is a measure of the resistance to motion between two surfaces that are moving relative to each other.

The unit of measurement for dynamic friction force is Newtons (N), consistent with the normal force. Like the coefficient of static friction, the coefficient of dynamic friction is dimensionless.

The inverse formulas for dynamic friction are also provided:

  1. μd = Fad / Fpr (to find the coefficient of dynamic friction when dynamic friction force and normal force are known)
  2. Fpr = Fad / μd (to find the normal force when dynamic friction force and coefficient of dynamic friction are known)

Example: If an object experiences a normal force of 100 N and the coefficient of dynamic friction between the object and the surface is 0.3, the dynamic friction force would be: Fad = 0.3 * 100 N = 30 N

Unlike static friction, dynamic friction is generally constant for a given pair of surfaces, regardless of the relative speed between them (although it can decrease slightly at very high speeds).

Highlight: Dynamic friction force is typically less than the maximum static friction force for the same surfaces, and it remains relatively constant regardless of the speed of motion.

Understanding dynamic friction is crucial in many applications, from designing braking systems to analyzing the motion of objects on inclined planes. It plays a significant role in energy dissipation and heat generation in moving systems.

FORZA-PESO Fp= FORZA-PESO m-MASSA 9 COSTANTE GRAVITASIONALE 4 97 9,81 units di misora FORMULE INVERSE g== (1/1) Fp= m. g (K₂) (N. NIKO perch

Vedi

Comparison of Forces

This section provides a comprehensive comparison of the forces discussed in the previous sections: weight force, elastic force, static friction force, and dynamic friction force. Understanding the similarities and differences between these forces is crucial for a deeper comprehension of physics principles.

Weight Force vs. Elastic Force While both weight force and elastic force are measured in Newtons, they arise from different physical phenomena. Weight force is always present due to gravity, while elastic force only occurs when an object is deformed.

Highlight: Weight force is constant for an object (assuming constant gravity), while elastic force varies with the amount of deformation.

Static Friction vs. Dynamic Friction Both static and dynamic friction forces oppose motion, but they apply in different scenarios. Static friction prevents an object at rest from moving, while dynamic friction resists the motion of an already moving object.

Example: When you try to push a heavy box, you first need to overcome static friction. Once the box starts moving, dynamic friction takes over.

Formulas and Variables All four forces have similar formula structures:

  • Weight Force: Fp = m * g
  • Elastic Force: Fe = k * s
  • Static Friction: Fas = μs * Fpr
  • Dynamic Friction: Fad = μd * Fpr

Each formula involves a constant (g, k, μs, μd) multiplied by another variable (m, s, Fpr).

Vocabulary: The constants in these formulas (g, k, μs, μd) are characteristic of the system or materials involved, while the variables (m, s, Fpr) can change based on the specific situation.

Applications Understanding these forces and their interplay is crucial for solving complex physics problems and real-world applications:

  • Weight force is essential in structural engineering and space exploration.
  • Elastic force is key in designing springs, shock absorbers, and understanding material properties.
  • Friction forces are critical in automotive design, especially for braking systems and tire performance.

Quote: "In physics, you don't have to go around making trouble for yourself - nature does it for you." - Frank Wilczek

This comparison helps to solidify the understanding of these fundamental forces, their similarities, differences, and applications in various fields of physics and engineering.

FORZA-PESO Fp= FORZA-PESO m-MASSA 9 COSTANTE GRAVITASIONALE 4 97 9,81 units di misora FORMULE INVERSE g== (1/1) Fp= m. g (K₂) (N. NIKO perch

Vedi

Problem-Solving Strategies

This section focuses on strategies for solving problems involving the forces discussed earlier: weight force, elastic force, static friction, and dynamic friction. Developing a systematic approach to problem-solving is crucial for success in physics.

General Problem-Solving Steps

  1. Read the problem carefully and identify the given information.
  2. Determine which force or forces are involved in the problem.
  3. Draw a free-body diagram to visualize the forces acting on the object.
  4. Choose the appropriate formula(s) based on the forces involved.
  5. Substitute the known values into the formula.
  6. Solve for the unknown variable.
  7. Check your answer for reasonableness and correct units.

Highlight: A well-drawn free-body diagram is often the key to solving complex physics problems involving multiple forces.

Weight Force Problems When solving weight force problems, remember that the gravitational constant g is typically 9.81 m/s^2 on Earth's surface. Be aware that g can change in different locations or on different planets.

Example: To find the mass of an object with a weight of 49.05 N on Earth: m = Fp / g = 49.05 N / 9.81 m/s^2 = 5 kg

Elastic Force Problems In elastic force problems, pay attention to whether the spring is being stretched or compressed. The direction of the force is always opposite to the displacement.

Vocabulary: The spring constant k is often given in N/m (Newtons per meter).

Friction Problems Friction problems often involve both static and dynamic friction. Remember that static friction can vary up to a maximum value, while dynamic friction is generally constant.

Example: To find the force needed to start moving a 10 kg box on a surface with a coefficient of static friction of 0.5:

  1. Calculate the normal force: Fpr = m * g = 10 kg * 9.81 m/s^2 = 98.1 N
  2. Calculate the maximum static friction: Fas = μs * Fpr = 0.5 * 98.1 N = 49.05 N The applied force must exceed 49.05 N to start moving the box.

Combined Force Problems Many real-world problems involve multiple forces acting simultaneously. In these cases:

  1. Identify all forces acting on the object.
  2. Draw a detailed free-body diagram.
  3. Resolve forces into their components if necessary.
  4. Apply Newton's laws of motion to set up equations.
  5. Solve the system of equations to find the unknown variables.

Highlight: In problems involving multiple forces, consider the net force acting on the object and its resulting acceleration or equilibrium condition.

By following these strategies and practicing regularly, students can develop strong problem-solving skills for a wide range of physics scenarios involving various forces.

FORZA-PESO Fp= FORZA-PESO m-MASSA 9 COSTANTE GRAVITASIONALE 4 97 9,81 units di misora FORMULE INVERSE g== (1/1) Fp= m. g (K₂) (N. NIKO perch

Vedi

Real-World Applications

This section explores the practical applications of the forces we've discussed: weight force, elastic force, static friction, and dynamic friction. Understanding how these forces manifest in everyday life and various industries can help solidify the concepts and demonstrate their importance.

Weight Force Applications

  1. Structural Engineering: Architects and engineers must account for the weight force of materials and occupants when designing buildings and bridges.
  2. Space Exploration: Understanding weight force is crucial for rocket design and planetary exploration, where gravitational forces can vary significantly.
  3. Sports: Many sports, such as weightlifting and gymnastics, rely heavily on athletes' understanding and manipulation of weight force.

Example: A skyscraper's design must account for the total weight force of all materials, furniture, and occupants to ensure structural integrity.

Elastic Force Applications

  1. Automotive Industry: Car suspensions use springs that rely on elastic force to provide a smooth ride.
  2. Sports Equipment: Many sports items, like tennis rackets and pole vaults, utilize elastic properties for improved performance.
  3. Seismology: Elastic properties of the Earth's crust are crucial in understanding and predicting earthquakes.

Vocabulary: Elasticity is the ability of a material to return to its original shape after being deformed.

Static Friction Applications

  1. Footwear Design: The soles of shoes are designed with specific materials and patterns to optimize static friction and prevent slipping.
  2. Rock Climbing: Climbers rely heavily on static friction between their hands, feet, and the rock surface.
  3. Industrial Machinery: Many manufacturing processes depend on static friction to hold materials in place during processing.

Highlight: Without static friction, it would be impossible to walk or drive on most surfaces.

Dynamic Friction Applications

  1. Automotive Braking Systems: The design of brake pads and rotors is based on optimizing dynamic friction for efficient stopping.
  2. Lubrication Engineering: In many machines, lubricants are used to reduce dynamic friction and wear between moving parts.
  3. Sports: Many winter sports, like skiing and ice skating, rely on minimizing dynamic friction for speed.

Example: Formula 1 racing teams carefully select tire compounds to balance the need for grip (high friction) with the desire for speed (low friction) under various track conditions.

Combined Force Applications

  1. Aerospace Engineering: Aircraft design must consider all forces - weight, lift, thrust, and drag (which involves both static and dynamic friction with the air).
  2. Robotics: Designing robots that can walk, climb, or manipulate objects requires a deep understanding of all these forces and their interactions.
  3. Biomechanics: Studying human and animal movement involves analyzing the interplay of weight, elastic forces in muscles and tendons, and friction with surfaces.

Quote: "Nature uses only the longest threads to weave her patterns, so each small piece of her fabric reveals the organization of the entire tapestry." - Richard Feynman

Understanding these real-world applications not only helps in grasping the theoretical concepts but also demonstrates the wide-ranging importance of physics in various fields and everyday life. It shows how mastering these fundamental forces can lead to innovations and improvements in countless areas of technology and human endeavor.

FORZA-PESO Fp= FORZA-PESO m-MASSA 9 COSTANTE GRAVITASIONALE 4 97 9,81 units di misora FORMULE INVERSE g== (1/1) Fp= m. g (K₂) (N. NIKO perch

Vedi

Experimental Techniques

This section focuses on experimental techniques used to measure and study the forces we've discussed: weight force, elastic force, static friction, and dynamic friction. Understanding these techniques is crucial for verifying theoretical concepts and developing practical applications.

Measuring Weight Force

  1. Digital Scales: Modern digital scales use strain gauges to measure the deformation caused by an object's weight.
  2. Spring Scales: These utilize Hooke's Law, measuring the extension of a spring to determine weight.
  3. Balance Scales: Compare the unknown weight to known standard weights.

Highlight: Accurate weight measurement is crucial in fields ranging from chemistry to commerce.

Measuring Elastic Force

  1. Force Sensors: Electronic sensors can measure the force exerted by a stretched or compressed spring.
  2. Displacement Sensors: Measure the extension or compression of a spring under various loads.
  3. Stress-Strain Tests: Used to determine elastic properties of materials by applying controlled forces and measuring deformation.

Example: A materials testing machine can stretch a sample and measure both the applied force and the resulting extension to determine its elastic properties.

Measuring Static Friction

  1. Inclined Plane Method: Gradually increase the angle of an inclined plane until an object starts to slide, then calculate the coefficient of static friction.
  2. Force Gauge Method: Use a force gauge to measure the force required to initiate motion of an object on a horizontal surface.
  3. Tribometers: Specialized devices designed to measure friction coefficients under various conditions.

Vocabulary: A tribometer is a device used to measure friction coefficients and wear between two surfaces.

Measuring Dynamic Friction

  1. Sliding Block Method: Measure the acceleration of a block sliding down an inclined plane to calculate the coefficient of dynamic friction.
  2. Rotational Tribometers: Use rotating discs or pins to measure dynamic friction in continuous motion.
  3. Drag Sleds: Measure the force required to maintain constant velocity of an object on a surface.

Example: In the automotive industry, specialized machines drag brake pads across rotating discs to measure dynamic friction coefficients under various conditions.

Advanced Experimental Techniques

  1. Atomic Force Microscopy (AFM): Used to measure friction forces at the nanoscale.
  2. High-Speed Cameras: Allow for detailed analysis of motion and deformation in dynamic experiments.
  3. Computer Simulations: While not strictly experimental, advanced simulations can model complex force interactions that might be difficult to measure directly.

Highlight: Modern experimental techniques often combine multiple measurement methods with advanced data analysis to provide comprehensive understanding of force interactions.

Experimental Design Considerations

  1. Control Variables: Ensure that only the variable of interest changes between measurements.
  2. Repeatability: Conduct multiple trials to ensure consistent results.
  3. Calibration: Regularly calibrate instruments to ensure accuracy.
  4. Error Analysis: Consider and quantify sources of experimental error.

Quote: "No amount of experimentation can ever prove me right; a single experiment can prove me wrong." - Albert Einstein

Understanding these experimental techniques is crucial for anyone looking to verify theoretical concepts or develop new applications involving these forces. It bridges the gap between theoretical physics and practical engineering, allowing for the development and refinement of technologies that rely on these fundamental forces.

FORZA-PESO Fp= FORZA-PESO m-MASSA 9 COSTANTE GRAVITASIONALE 4 97 9,81 units di misora FORMULE INVERSE g== (1/1) Fp= m. g (K₂) (N. NIKO perch

Vedi

Historical Context and Development

This section provides a historical perspective on the understanding and study of weight force, elastic force, static friction, and dynamic friction. Tracing the development of these concepts helps us appreciate the cumulative nature of scientific knowledge and the brilliant minds that contributed to our current understanding.

Weight Force The concept of weight has been understood intuitively for millennia, but its scientific understanding evolved significantly over time.

  1. Ancient Greece: Aristotle (384-322 BCE) believed that heavier objects fall faster than lighter ones.
  2. Renaissance: Galileo Galilei (1564-1642) disproved Aristotle's theory through experiments, showing that all objects fall at the same rate in a vacuum.
  3. 17th Century: Isaac Newton (1643-1727) formulated the law of universal gravitation, providing a mathematical framework for understanding weight force.

Quote: "I have not as yet been able to discover the reason for these properties of gravity from phenomena, and I do not feign hypotheses." - Isaac Newton

Elastic Force The study of elasticity and elastic forces developed alongside advancements in materials science and physics.

  1. 17th Century: Robert Hooke (1635-1703) formulated Hooke's Law, describing the linear relationship between force and displacement in springs.
  2. 19th Century: Thomas Young (1773-1829) introduced the concept of the elastic modulus, providing a measure of a material's stiffness.
  3. 20th Century: Advances in materials science led to a deeper understanding of elasticity at the atomic and molecular levels.

Highlight: Hooke's Law, formulated in 1660, remains a fundamental principle in understanding elastic forces.

Friction The study of friction has a long history, with significant developments occurring over several centuries.

  1. Ancient Times: Early civilizations used lubricants to reduce friction, though without a scientific understanding of the concept.
  2. 15th Century: Leonardo da Vinci (1452-1519) conducted some of the first scientific studies on friction, noting that friction is independent of the apparent area of contact.
  3. 17th-18th Centuries: Guillaume Amontons (1663-1705) and Charles-Augustin de Coulomb (1736-1806) formulated the classical laws of friction.
  4. 20th Century: The development of atomic force microscopy allowed for the study of friction at the atomic scale.

Vocabulary: Tribology, the study of friction, wear, and lubrication, was established as a distinct scientific discipline in the 1960s.

Key Developments in Experimental Techniques

  1. 17th Century: Development of the scientific method led to more rigorous experimental approaches.
  2. 19th Century: Improved measurement tools and techniques allowed for more precise quantification of forces.
  3. 20th Century: Electronic sensors and computer-aided data analysis revolutionized force measurement and analysis.
  4. 21st Century: Nanotechnology has enabled the study of forces at unprecedented small scales.

Example: The atomic force microscope, invented in 1986, allowed scientists to measure forces between individual atoms for the first time.

Interdisciplinary Connections The study of these forces has always been interdisciplinary, involving physics, mathematics, engineering, and materials science.

  1. Mathematics: Development of calculus by Newton and Leibniz provided tools for analyzing force and motion.
  2. Engineering: Application of force concepts led to advances in construction, machinery, and transportation.
  3. Materials Science: Understanding of forces at the atomic and molecular levels has driven the development of new materials with specific properties.

Quote: "If I have seen further it is by standing on the shoulders of Giants." - Isaac Newton

This historical perspective demonstrates how our understanding of these fundamental forces has evolved over time, driven by curiosity, observation, and rigorous scientific inquiry. It also highlights the interconnected nature of scientific progress, where advances in one area often lead to breakthroughs in others.

FORZA-PESO Fp= FORZA-PESO m-MASSA 9 COSTANTE GRAVITASIONALE 4 97 9,81 units di misora FORMULE INVERSE g== (1/1) Fp= m. g (K₂) (N. NIKO perch

Vedi

Advanced Concepts and Current Research

This section delves into more advanced concepts related to weight force, elastic force, static friction, and dynamic friction, as well as current areas of research. These topics represent the cutting edge of our understanding and the directions in which the field is evolving.

Advanced Weight Force Concepts

  1. General Relativity: Einstein's theory provides a more accurate description of gravity, especially in extreme conditions.
  2. Quantum Gravity: Ongoing research attempts to reconcile gravity with quantum mechanics.
  3. Dark Matter: The search for dark matter involves studying gravitational effects that can't be explained by visible matter alone.

Highlight: The detection of gravitational waves in 2015 opened up a new field of gravitational wave astronomy, allowing us to observe cosmic events through gravity itself.

Advanced Elastic Force Concepts

  1. Non-linear Elasticity: Many materials exhibit non-linear elastic behavior under extreme conditions.
  2. Viscoelasticity: Some materials display both viscous and elastic characteristics when undergoing deformation.
  3. Piezoelectricity: Certain materials generate an electric charge in response to applied mechanical stress.

Example: Shape memory alloys can return to their original shape after deformation when heated, displaying complex elastic behavior.

Advanced Friction Concepts

  1. Nanoscale Friction: Friction behaves differently at the nanoscale, often not following macroscopic laws.
  2. Superlubricity: Under certain conditions, friction can become nearly zero between two surfaces.
  3. Stick-Slip Phenomenon: This explains many friction-related phenomena, from squeaking doors to earthquakes.

Vocabulary: Superlubricity is a regime of motion in which friction almost vanishes.

Current Research Areas

  1. Biomimetic Materials: Researchers are studying natural materials to develop synthetic materials with enhanced properties, including unique elastic and frictional characteristics.
  2. Quantum Friction: Exploring friction effects in quantum systems, including potential applications in quantum computing.
  3. Smart Materials: Developing materials that can change their elastic or frictional properties in response to external stimuli.
  4. Tribology in Extreme Conditions: Studying friction and wear in extreme environments, such as space or deep-sea applications.

Quote: "The most exciting phrase to hear in science, the one that heralds new discoveries, is not 'Eureka!' but 'That's funny...'" - Isaac Asimov

Interdisciplinary Applications

  1. Nanotechnology: Understanding forces at the nanoscale is crucial for developing nanotechnology applications.
  2. Bioengineering: Elastic properties of tissues and friction in joints are important in developing medical implants and treatments.
  3. Geophysics: Advanced understanding of friction is crucial in studying earthquakes and tectonic plate movements.
  4. Clean Energy: Reducing friction in various systems can significantly improve energy efficiency.

Example: Research into low-friction coatings for wind turbine bearings could significantly increase their efficiency and lifespan.

Computational Advances

  1. Molecular Dynamics Simulations: Allow for detailed modeling of material behavior at the atomic level.
  2. Machine Learning: Being applied to predict material properties and behavior under various conditions.
  3. Quantum Computations: May provide new insights into fundamental force interactions.

Highlight: Advanced computational methods are enabling researchers to model and predict complex force interactions that were previously impossible to study.

These advanced concepts and current research areas demonstrate that our understanding of fundamental forces is far from complete. They represent exciting frontiers in physics and engineering, with potential applications that could revolutionize various fields, from energy production to medical treatments. As technology advances, our ability to study and manipulate these forces at ever-smaller scales and in more complex systems continues to grow, promising new discoveries and innovations in the future.

FORZA-PESO Fp= FORZA-PESO m-MASSA 9 COSTANTE GRAVITASIONALE 4 97 9,81 units di misora FORMULE INVERSE g== (1/1) Fp= m. g (K₂) (N. NIKO perch

Vedi

Practical Applications and Engineering Challenges

This section focuses on the practical applications of our understanding of weight force, elastic force, static friction, and dynamic friction in various engineering fields. It also discusses the challenges engineers face when dealing with these forces in real-world scenarios.

Aerospace Engineering Applications:

  1. Aircraft Design: Balancing weight, lift, and drag forces for optimal performance.
  2. Spacecraft Materials: Developing materials that can withstand extreme forces during launch and re-entry.
  3. Satellite Technology: Designing systems that can operate in zero-gravity environments.

Challenges:

  1. Weight Reduction: Constantly seeking ways to reduce weight without compromising structural integrity.
  2. Friction in Space: Developing lubricants that work in the vacuum of space.

Example: The development of carbon fiber composites has revolutionized aerospace engineering by providing high strength-to-weight ratios.

Automotive Engineering Applications:

  1. Suspension Systems: Utilizing elastic forces for a smooth ride.
  2. Brake Design: Optimizing friction for effective stopping power.
  3. Tire Technology: Balancing friction for grip with low rolling resistance for fuel efficiency.

Challenges:

  1. Energy Efficiency: Reducing weight and friction to improve fuel economy.
  2. Safety: Designing crumple zones that effectively absorb impact forces.

Highlight: Advanced tire compounds can change their frictional properties based on temperature and road conditions.

Civil Engineering Applications:

  1. Earthquake-Resistant Structures: Designing buildings that can withstand seismic forces.
  2. Bridge Design: Accounting for dynamic loads and thermal expansion.
  3. Geotechnical Engineering: Understanding soil mechanics and friction for foundation design.

Challenges:

  1. Long-Term Structural Integrity: Ensuring structures can withstand forces over decades or centuries.
  2. Environmental Forces: Designing for extreme weather events and changing climate conditions.

Vocabulary: Seismic isolation involves designing a structure to reduce the effects of earthquake ground motion.

Biomedical Engineering Applications:

  1. Prosthetics: Designing artificial limbs that mimic natural biomechanics.
  2. Surgical Instruments: Developing tools with optimal frictional properties for precise control.
  3. Implant Materials: Creating biocompatible materials with appropriate elastic properties.

Challenges:

  1. Biocompatibility: Ensuring materials interact safely with the human body.
  2. Wear Resistance: Developing implants that can withstand years of use without degradation.

Quote: "The greatest challenge to any thinker is stating the problem in a way that will allow a solution." - Bertrand Russell

Nanotechnology Applications:

  1. Nanoelectromechanical Systems (NEMS): Developing tiny machines where surface forces dominate.
  2. Nanomaterials: Creating materials with unique properties by manipulating forces at the atomic scale.
  3. Nanocoatings: Developing ultra-thin coatings to modify surface properties.

Challenges:

  1. Scaling Effects: Understanding how forces behave differently at the nanoscale.
  2. Measurement and Control: Developing tools to accurately measure and manipulate at nanoscale.

Example: Gecko-inspired adhesives use van der Waals forces to create strong, reversible adhesion without traditional sticky substances.

Energy Sector Applications:

  1. Wind Turbines: Optimizing blade design for lift and minimizing friction in bearings.
  2. Hydroelectric Dams: Managing enormous forces of water for power generation.
  3. Fracking Technology: Understanding fluid dynamics and rock mechanics.

Challenges:

  1. Wear and Tear: Developing materials that can withstand constant forces in harsh environments.
  2. Efficiency: Minimizing energy losses due to friction and other forces.

Highlight: Advanced lubricants and coatings can significantly increase the efficiency and lifespan of energy-generating equipment.

Robotics Applications:

  1. Gripper Design: Creating end effectors with appropriate frictional properties for various tasks.
  2. Locomotion: Developing walking, climbing, or flying robots that can navigate various terrains.
  3. Soft Robotics: Utilizing elastic materials for flexible and adaptable robot designs.

Challenges:

  1. Adaptability: Designing robots that can adjust to different surface conditions and force requirements.
  2. Energy Efficiency: Minimizing energy consumption in movement and force application.

Example: Boston Dynamics' robots demonstrate advanced control of forces for dynamic movement and balance.

These practical applications and challenges demonstrate the crucial role that understanding forces plays in modern engineering. As technology advances, engineers continually push the boundaries of what's possible, finding new ways to harness and control these fundamental forces. The interdisciplinary nature of these challenges often leads to innovative solutions that can have wide-ranging impacts across multiple fields.

Contenuti simili

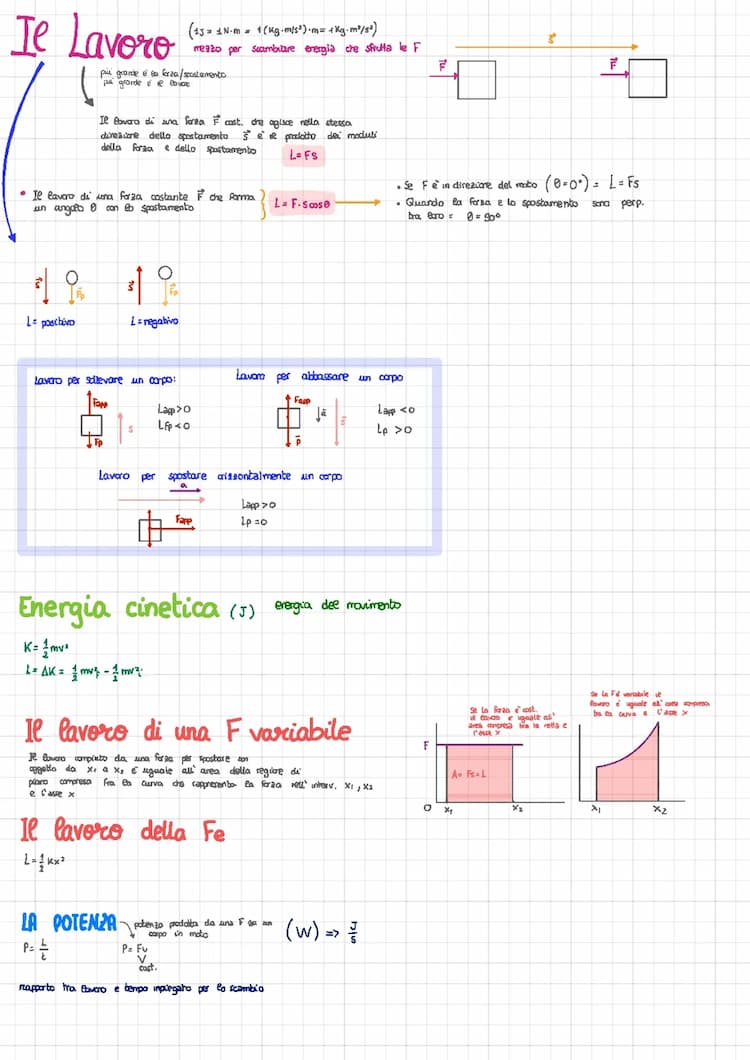

Know il lavoro e l’energia thumbnail

143

4403

3ªl

il lavoro e l’energia

lavoro, energia cinetica, lavoro di una forza variabile, lavoro della forza elastica, potenza, forze conservative, energia potenziale, energia meccanica, lavoro di forze non conservative.

Non c'è niente di adatto? Esplorare altre aree tematiche.

Knowunity è l'app per l'istruzione numero 1 in cinque paesi europei

Knowunity è stata inserita in un articolo di Apple ed è costantemente in cima alle classifiche degli app store nella categoria istruzione in Germania, Italia, Polonia, Svizzera e Regno Unito. Unisciti a Knowunity oggi stesso e aiuta milioni di studenti in tutto il mondo.

Ranked #1 Education App

Scarica

Google Play

Scarica

App Store

Knowunity è l'app per l'istruzione numero 1 in cinque paesi europei

4.9+

Valutazione media dell'app

13 M

Studenti che usano Knowunity

#1

Nelle classifiche delle app per l'istruzione in 12 Paesi

950 K+

Studenti che hanno caricato appunti

Non siete ancora sicuri? Guarda cosa dicono gli altri studenti...

Utente iOS

Adoro questa applicazione [...] consiglio Knowunity a tutti!!! Sono passato da un 5 a una 8 con questa app

Stefano S, utente iOS

L'applicazione è molto semplice e ben progettata. Finora ho sempre trovato quello che stavo cercando

Susanna, utente iOS

Adoro questa app ❤️, la uso praticamente sempre quando studio.

Materie

/

Fisica

/

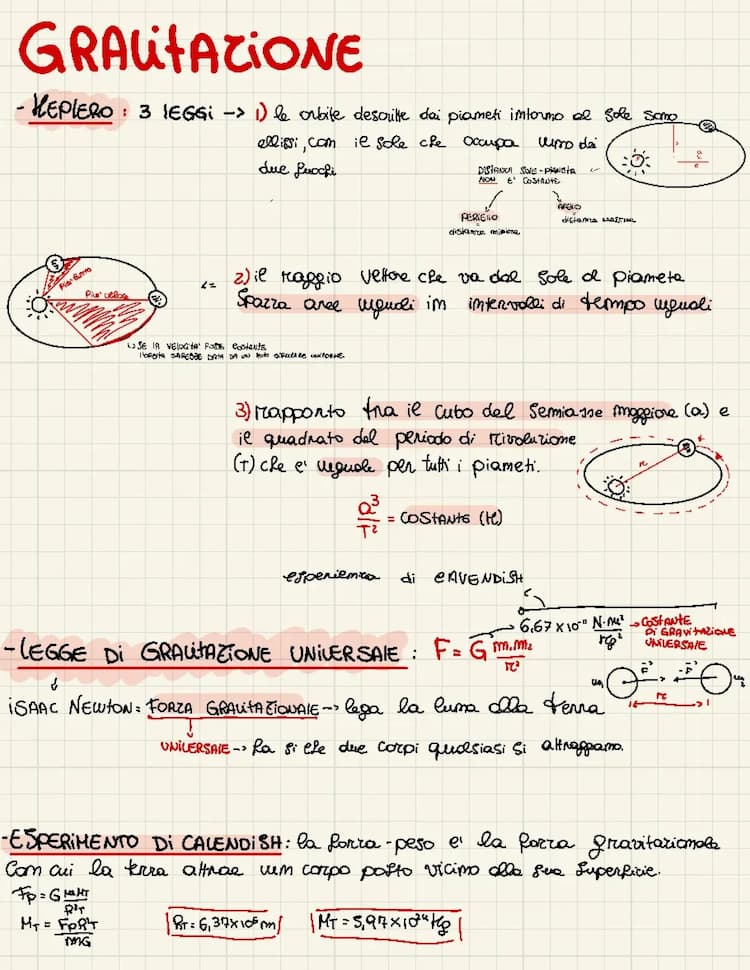

La gravitazione

/

L’energia potenziale

Scopri Come Calcolare la Forza di Attrito e Altre Sorprese!

user profile picture

Anna Lani

@annalani

·

57 Follower

Segui

Questo documento fornisce una panoramica dettagliata delle principali forze in fisica, incluse le formule e i concetti chiave.

  • Analizza la forza-peso, la forza elastica, la forza di attrito statico e la forza di attrito dinamico
  • Presenta le formule dirette e inverse per ciascuna forza
  • Spiega i coefficienti e le costanti rilevanti per ogni tipo di forza
  • Include unità di misura e simboli utilizzati nelle equazioni

24/9/2022

4610



3ªl



Fisica

137

FORZA-PESO Fp= FORZA-PESO m-MASSA 9 COSTANTE GRAVITASIONALE 4 97 9,81 units di misora FORMULE INVERSE g== (1/1) Fp= m. g (K₂) (N. NIKO perch

Elastic Force (Forza Elastica)

This section delves into the concept of elastic force, which is the force exerted by a spring or elastic material when it is stretched or compressed. The forza elastica formula is presented as Fe = k * s, where Fe is the elastic force, k is the spring constant (a measure of the spring's stiffness), and s is the displacement or change in length of the spring.

Definition: Elastic force (Forza Elastica) is the force exerted by a spring or elastic material when it is stretched or compressed.

The spring constant k is a crucial parameter that determines how much force is needed to stretch or compress the spring. It is a measure of the spring's stiffness or resistance to deformation.

Vocabulary: The spring constant (k) is a measure of a spring's stiffness, indicating how much force is required to stretch or compress it.

The unit of measurement for elastic force is Newtons (N), consistent with the units of the formula components: spring constant (N/m) multiplied by displacement (m) results in force (N).

The forza elastica formule inverse are also provided:

  1. k = Fe / s (to find the spring constant when elastic force and displacement are known)
  2. s = Fe / k (to find the displacement when elastic force and spring constant are known)

These inverse formulas are particularly useful for solving problems where different variables are unknown.

Example: If a spring with a spring constant of 100 N/m is stretched by 0.1 m, the elastic force would be: Fe = 100 N/m * 0.1 m = 10 N

The concept of elastic force is closely related to Hooke's Law, which states that the force exerted by a spring is directly proportional to its displacement from equilibrium, within the elastic limit.

Highlight: Hooke's Law states that the force exerted by a spring is directly proportional to its displacement, within the elastic limit.

Understanding elastic force is crucial in many applications, from the design of mechanical systems to the study of material properties. It forms the basis for understanding more complex systems involving springs and elastic materials.

FORZA-PESO Fp= FORZA-PESO m-MASSA 9 COSTANTE GRAVITASIONALE 4 97 9,81 units di misora FORMULE INVERSE g== (1/1) Fp= m. g (K₂) (N. NIKO perch

Static Friction Force (Forza di Attrito Statico)

This section introduces the concept of static friction force, which is the force that prevents an object at rest from starting to move. The formula for static friction force is presented as Fas = μs * Fpr, where Fas is the static friction force, μs is the coefficient of static friction, and Fpr is the normal force (the force perpendicular to the surface).

Definition: Static friction force (Forza di Attrito Statico) is the force that prevents an object at rest from starting to move relative to the surface it's in contact with.

The coefficient of static friction (μs) is a dimensionless quantity that depends on the nature of the two surfaces in contact. It represents the ratio of the maximum static friction force to the normal force.

Vocabulary: The coefficient of static friction (μs) is a measure of the resistance to motion between two surfaces that are not moving relative to each other.

The unit of measurement for static friction force is Newtons (N), consistent with the normal force (also measured in Newtons). The coefficient of static friction is dimensionless.

The inverse formulas for static friction are also provided:

  1. μs = Fas / Fpr (to find the coefficient of static friction when static friction force and normal force are known)
  2. Fpr = Fas / μs (to find the normal force when static friction force and coefficient of static friction are known)

Example: If an object experiences a normal force of 100 N and the coefficient of static friction between the object and the surface is 0.5, the maximum static friction force would be: Fas = 0.5 * 100 N = 50 N

It's important to note that the static friction force can vary from zero up to this maximum value, depending on the applied force trying to move the object.

Highlight: The static friction force opposes the impending motion of an object, and its magnitude can vary up to a maximum value determined by the coefficient of static friction and the normal force.

Understanding static friction is crucial in many real-world applications, from designing non-slip surfaces to analyzing the stability of structures. It plays a significant role in our everyday interactions with objects and surfaces.

FORZA-PESO Fp= FORZA-PESO m-MASSA 9 COSTANTE GRAVITASIONALE 4 97 9,81 units di misora FORMULE INVERSE g== (1/1) Fp= m. g (K₂) (N. NIKO perch

Dynamic Friction Force (Forza di Attrito Dinamico)

This section explores the concept of dynamic friction force, also known as kinetic friction. This is the force that resists the motion of an object sliding along a surface. The formula for dynamic friction force is presented as Fad = μd * Fpr, where Fad is the dynamic friction force, μd is the coefficient of dynamic friction, and Fpr is the normal force.

Definition: Dynamic friction force (Forza di Attrito Dinamico) is the force that resists the motion of an object sliding along a surface.

The coefficient of dynamic friction (μd) is typically less than the coefficient of static friction for the same pair of surfaces. This explains why it's often easier to keep an object moving than to start it moving from rest.

Vocabulary: The coefficient of dynamic friction (μd) is a measure of the resistance to motion between two surfaces that are moving relative to each other.

The unit of measurement for dynamic friction force is Newtons (N), consistent with the normal force. Like the coefficient of static friction, the coefficient of dynamic friction is dimensionless.

The inverse formulas for dynamic friction are also provided:

  1. μd = Fad / Fpr (to find the coefficient of dynamic friction when dynamic friction force and normal force are known)
  2. Fpr = Fad / μd (to find the normal force when dynamic friction force and coefficient of dynamic friction are known)

Example: If an object experiences a normal force of 100 N and the coefficient of dynamic friction between the object and the surface is 0.3, the dynamic friction force would be: Fad = 0.3 * 100 N = 30 N

Unlike static friction, dynamic friction is generally constant for a given pair of surfaces, regardless of the relative speed between them (although it can decrease slightly at very high speeds).

Highlight: Dynamic friction force is typically less than the maximum static friction force for the same surfaces, and it remains relatively constant regardless of the speed of motion.

Understanding dynamic friction is crucial in many applications, from designing braking systems to analyzing the motion of objects on inclined planes. It plays a significant role in energy dissipation and heat generation in moving systems.

FORZA-PESO Fp= FORZA-PESO m-MASSA 9 COSTANTE GRAVITASIONALE 4 97 9,81 units di misora FORMULE INVERSE g== (1/1) Fp= m. g (K₂) (N. NIKO perch

Comparison of Forces

This section provides a comprehensive comparison of the forces discussed in the previous sections: weight force, elastic force, static friction force, and dynamic friction force. Understanding the similarities and differences between these forces is crucial for a deeper comprehension of physics principles.

Weight Force vs. Elastic Force While both weight force and elastic force are measured in Newtons, they arise from different physical phenomena. Weight force is always present due to gravity, while elastic force only occurs when an object is deformed.

Highlight: Weight force is constant for an object (assuming constant gravity), while elastic force varies with the amount of deformation.

Static Friction vs. Dynamic Friction Both static and dynamic friction forces oppose motion, but they apply in different scenarios. Static friction prevents an object at rest from moving, while dynamic friction resists the motion of an already moving object.

Example: When you try to push a heavy box, you first need to overcome static friction. Once the box starts moving, dynamic friction takes over.

Formulas and Variables All four forces have similar formula structures:

  • Weight Force: Fp = m * g
  • Elastic Force: Fe = k * s
  • Static Friction: Fas = μs * Fpr
  • Dynamic Friction: Fad = μd * Fpr

Each formula involves a constant (g, k, μs, μd) multiplied by another variable (m, s, Fpr).

Vocabulary: The constants in these formulas (g, k, μs, μd) are characteristic of the system or materials involved, while the variables (m, s, Fpr) can change based on the specific situation.

Applications Understanding these forces and their interplay is crucial for solving complex physics problems and real-world applications:

  • Weight force is essential in structural engineering and space exploration.
  • Elastic force is key in designing springs, shock absorbers, and understanding material properties.
  • Friction forces are critical in automotive design, especially for braking systems and tire performance.

Quote: "In physics, you don't have to go around making trouble for yourself - nature does it for you." - Frank Wilczek

This comparison helps to solidify the understanding of these fundamental forces, their similarities, differences, and applications in various fields of physics and engineering.

FORZA-PESO Fp= FORZA-PESO m-MASSA 9 COSTANTE GRAVITASIONALE 4 97 9,81 units di misora FORMULE INVERSE g== (1/1) Fp= m. g (K₂) (N. NIKO perch

Problem-Solving Strategies

This section focuses on strategies for solving problems involving the forces discussed earlier: weight force, elastic force, static friction, and dynamic friction. Developing a systematic approach to problem-solving is crucial for success in physics.

General Problem-Solving Steps

  1. Read the problem carefully and identify the given information.
  2. Determine which force or forces are involved in the problem.
  3. Draw a free-body diagram to visualize the forces acting on the object.
  4. Choose the appropriate formula(s) based on the forces involved.
  5. Substitute the known values into the formula.
  6. Solve for the unknown variable.
  7. Check your answer for reasonableness and correct units.

Highlight: A well-drawn free-body diagram is often the key to solving complex physics problems involving multiple forces.

Weight Force Problems When solving weight force problems, remember that the gravitational constant g is typically 9.81 m/s^2 on Earth's surface. Be aware that g can change in different locations or on different planets.

Example: To find the mass of an object with a weight of 49.05 N on Earth: m = Fp / g = 49.05 N / 9.81 m/s^2 = 5 kg

Elastic Force Problems In elastic force problems, pay attention to whether the spring is being stretched or compressed. The direction of the force is always opposite to the displacement.

Vocabulary: The spring constant k is often given in N/m (Newtons per meter).

Friction Problems Friction problems often involve both static and dynamic friction. Remember that static friction can vary up to a maximum value, while dynamic friction is generally constant.

Example: To find the force needed to start moving a 10 kg box on a surface with a coefficient of static friction of 0.5:

  1. Calculate the normal force: Fpr = m * g = 10 kg * 9.81 m/s^2 = 98.1 N
  2. Calculate the maximum static friction: Fas = μs * Fpr = 0.5 * 98.1 N = 49.05 N The applied force must exceed 49.05 N to start moving the box.

Combined Force Problems Many real-world problems involve multiple forces acting simultaneously. In these cases:

  1. Identify all forces acting on the object.
  2. Draw a detailed free-body diagram.
  3. Resolve forces into their components if necessary.
  4. Apply Newton's laws of motion to set up equations.
  5. Solve the system of equations to find the unknown variables.

Highlight: In problems involving multiple forces, consider the net force acting on the object and its resulting acceleration or equilibrium condition.

By following these strategies and practicing regularly, students can develop strong problem-solving skills for a wide range of physics scenarios involving various forces.

FORZA-PESO Fp= FORZA-PESO m-MASSA 9 COSTANTE GRAVITASIONALE 4 97 9,81 units di misora FORMULE INVERSE g== (1/1) Fp= m. g (K₂) (N. NIKO perch

Real-World Applications

This section explores the practical applications of the forces we've discussed: weight force, elastic force, static friction, and dynamic friction. Understanding how these forces manifest in everyday life and various industries can help solidify the concepts and demonstrate their importance.

Weight Force Applications

  1. Structural Engineering: Architects and engineers must account for the weight force of materials and occupants when designing buildings and bridges.
  2. Space Exploration: Understanding weight force is crucial for rocket design and planetary exploration, where gravitational forces can vary significantly.
  3. Sports: Many sports, such as weightlifting and gymnastics, rely heavily on athletes' understanding and manipulation of weight force.

Example: A skyscraper's design must account for the total weight force of all materials, furniture, and occupants to ensure structural integrity.

Elastic Force Applications

  1. Automotive Industry: Car suspensions use springs that rely on elastic force to provide a smooth ride.
  2. Sports Equipment: Many sports items, like tennis rackets and pole vaults, utilize elastic properties for improved performance.
  3. Seismology: Elastic properties of the Earth's crust are crucial in understanding and predicting earthquakes.

Vocabulary: Elasticity is the ability of a material to return to its original shape after being deformed.

Static Friction Applications

  1. Footwear Design: The soles of shoes are designed with specific materials and patterns to optimize static friction and prevent slipping.
  2. Rock Climbing: Climbers rely heavily on static friction between their hands, feet, and the rock surface.
  3. Industrial Machinery: Many manufacturing processes depend on static friction to hold materials in place during processing.

Highlight: Without static friction, it would be impossible to walk or drive on most surfaces.

Dynamic Friction Applications

  1. Automotive Braking Systems: The design of brake pads and rotors is based on optimizing dynamic friction for efficient stopping.
  2. Lubrication Engineering: In many machines, lubricants are used to reduce dynamic friction and wear between moving parts.
  3. Sports: Many winter sports, like skiing and ice skating, rely on minimizing dynamic friction for speed.

Example: Formula 1 racing teams carefully select tire compounds to balance the need for grip (high friction) with the desire for speed (low friction) under various track conditions.

Combined Force Applications

  1. Aerospace Engineering: Aircraft design must consider all forces - weight, lift, thrust, and drag (which involves both static and dynamic friction with the air).
  2. Robotics: Designing robots that can walk, climb, or manipulate objects requires a deep understanding of all these forces and their interactions.
  3. Biomechanics: Studying human and animal movement involves analyzing the interplay of weight, elastic forces in muscles and tendons, and friction with surfaces.

Quote: "Nature uses only the longest threads to weave her patterns, so each small piece of her fabric reveals the organization of the entire tapestry." - Richard Feynman

Understanding these real-world applications not only helps in grasping the theoretical concepts but also demonstrates the wide-ranging importance of physics in various fields and everyday life. It shows how mastering these fundamental forces can lead to innovations and improvements in countless areas of technology and human endeavor.

FORZA-PESO Fp= FORZA-PESO m-MASSA 9 COSTANTE GRAVITASIONALE 4 97 9,81 units di misora FORMULE INVERSE g== (1/1) Fp= m. g (K₂) (N. NIKO perch

Experimental Techniques

This section focuses on experimental techniques used to measure and study the forces we've discussed: weight force, elastic force, static friction, and dynamic friction. Understanding these techniques is crucial for verifying theoretical concepts and developing practical applications.

Measuring Weight Force

  1. Digital Scales: Modern digital scales use strain gauges to measure the deformation caused by an object's weight.
  2. Spring Scales: These utilize Hooke's Law, measuring the extension of a spring to determine weight.
  3. Balance Scales: Compare the unknown weight to known standard weights.

Highlight: Accurate weight measurement is crucial in fields ranging from chemistry to commerce.

Measuring Elastic Force

  1. Force Sensors: Electronic sensors can measure the force exerted by a stretched or compressed spring.
  2. Displacement Sensors: Measure the extension or compression of a spring under various loads.
  3. Stress-Strain Tests: Used to determine elastic properties of materials by applying controlled forces and measuring deformation.

Example: A materials testing machine can stretch a sample and measure both the applied force and the resulting extension to determine its elastic properties.

Measuring Static Friction

  1. Inclined Plane Method: Gradually increase the angle of an inclined plane until an object starts to slide, then calculate the coefficient of static friction.
  2. Force Gauge Method: Use a force gauge to measure the force required to initiate motion of an object on a horizontal surface.
  3. Tribometers: Specialized devices designed to measure friction coefficients under various conditions.

Vocabulary: A tribometer is a device used to measure friction coefficients and wear between two surfaces.

Measuring Dynamic Friction

  1. Sliding Block Method: Measure the acceleration of a block sliding down an inclined plane to calculate the coefficient of dynamic friction.
  2. Rotational Tribometers: Use rotating discs or pins to measure dynamic friction in continuous motion.
  3. Drag Sleds: Measure the force required to maintain constant velocity of an object on a surface.

Example: In the automotive industry, specialized machines drag brake pads across rotating discs to measure dynamic friction coefficients under various conditions.

Advanced Experimental Techniques

  1. Atomic Force Microscopy (AFM): Used to measure friction forces at the nanoscale.
  2. High-Speed Cameras: Allow for detailed analysis of motion and deformation in dynamic experiments.
  3. Computer Simulations: While not strictly experimental, advanced simulations can model complex force interactions that might be difficult to measure directly.

Highlight: Modern experimental techniques often combine multiple measurement methods with advanced data analysis to provide comprehensive understanding of force interactions.

Experimental Design Considerations

  1. Control Variables: Ensure that only the variable of interest changes between measurements.
  2. Repeatability: Conduct multiple trials to ensure consistent results.
  3. Calibration: Regularly calibrate instruments to ensure accuracy.
  4. Error Analysis: Consider and quantify sources of experimental error.

Quote: "No amount of experimentation can ever prove me right; a single experiment can prove me wrong." - Albert Einstein

Understanding these experimental techniques is crucial for anyone looking to verify theoretical concepts or develop new applications involving these forces. It bridges the gap between theoretical physics and practical engineering, allowing for the development and refinement of technologies that rely on these fundamental forces.

FORZA-PESO Fp= FORZA-PESO m-MASSA 9 COSTANTE GRAVITASIONALE 4 97 9,81 units di misora FORMULE INVERSE g== (1/1) Fp= m. g (K₂) (N. NIKO perch

Historical Context and Development

This section provides a historical perspective on the understanding and study of weight force, elastic force, static friction, and dynamic friction. Tracing the development of these concepts helps us appreciate the cumulative nature of scientific knowledge and the brilliant minds that contributed to our current understanding.

Weight Force The concept of weight has been understood intuitively for millennia, but its scientific understanding evolved significantly over time.

  1. Ancient Greece: Aristotle (384-322 BCE) believed that heavier objects fall faster than lighter ones.
  2. Renaissance: Galileo Galilei (1564-1642) disproved Aristotle's theory through experiments, showing that all objects fall at the same rate in a vacuum.
  3. 17th Century: Isaac Newton (1643-1727) formulated the law of universal gravitation, providing a mathematical framework for understanding weight force.

Quote: "I have not as yet been able to discover the reason for these properties of gravity from phenomena, and I do not feign hypotheses." - Isaac Newton

Elastic Force The study of elasticity and elastic forces developed alongside advancements in materials science and physics.

  1. 17th Century: Robert Hooke (1635-1703) formulated Hooke's Law, describing the linear relationship between force and displacement in springs.
  2. 19th Century: Thomas Young (1773-1829) introduced the concept of the elastic modulus, providing a measure of a material's stiffness.
  3. 20th Century: Advances in materials science led to a deeper understanding of elasticity at the atomic and molecular levels.

Highlight: Hooke's Law, formulated in 1660, remains a fundamental principle in understanding elastic forces.

Friction The study of friction has a long history, with significant developments occurring over several centuries.

  1. Ancient Times: Early civilizations used lubricants to reduce friction, though without a scientific understanding of the concept.
  2. 15th Century: Leonardo da Vinci (1452-1519) conducted some of the first scientific studies on friction, noting that friction is independent of the apparent area of contact.
  3. 17th-18th Centuries: Guillaume Amontons (1663-1705) and Charles-Augustin de Coulomb (1736-1806) formulated the classical laws of friction.
  4. 20th Century: The development of atomic force microscopy allowed for the study of friction at the atomic scale.

Vocabulary: Tribology, the study of friction, wear, and lubrication, was established as a distinct scientific discipline in the 1960s.

Key Developments in Experimental Techniques

  1. 17th Century: Development of the scientific method led to more rigorous experimental approaches.
  2. 19th Century: Improved measurement tools and techniques allowed for more precise quantification of forces.
  3. 20th Century: Electronic sensors and computer-aided data analysis revolutionized force measurement and analysis.
  4. 21st Century: Nanotechnology has enabled the study of forces at unprecedented small scales.

Example: The atomic force microscope, invented in 1986, allowed scientists to measure forces between individual atoms for the first time.

Interdisciplinary Connections The study of these forces has always been interdisciplinary, involving physics, mathematics, engineering, and materials science.

  1. Mathematics: Development of calculus by Newton and Leibniz provided tools for analyzing force and motion.
  2. Engineering: Application of force concepts led to advances in construction, machinery, and transportation.
  3. Materials Science: Understanding of forces at the atomic and molecular levels has driven the development of new materials with specific properties.

Quote: "If I have seen further it is by standing on the shoulders of Giants." - Isaac Newton

This historical perspective demonstrates how our understanding of these fundamental forces has evolved over time, driven by curiosity, observation, and rigorous scientific inquiry. It also highlights the interconnected nature of scientific progress, where advances in one area often lead to breakthroughs in others.

FORZA-PESO Fp= FORZA-PESO m-MASSA 9 COSTANTE GRAVITASIONALE 4 97 9,81 units di misora FORMULE INVERSE g== (1/1) Fp= m. g (K₂) (N. NIKO perch

Advanced Concepts and Current Research

This section delves into more advanced concepts related to weight force, elastic force, static friction, and dynamic friction, as well as current areas of research. These topics represent the cutting edge of our understanding and the directions in which the field is evolving.

Advanced Weight Force Concepts

  1. General Relativity: Einstein's theory provides a more accurate description of gravity, especially in extreme conditions.
  2. Quantum Gravity: Ongoing research attempts to reconcile gravity with quantum mechanics.
  3. Dark Matter: The search for dark matter involves studying gravitational effects that can't be explained by visible matter alone.

Highlight: The detection of gravitational waves in 2015 opened up a new field of gravitational wave astronomy, allowing us to observe cosmic events through gravity itself.

Advanced Elastic Force Concepts

  1. Non-linear Elasticity: Many materials exhibit non-linear elastic behavior under extreme conditions.
  2. Viscoelasticity: Some materials display both viscous and elastic characteristics when undergoing deformation.
  3. Piezoelectricity: Certain materials generate an electric charge in response to applied mechanical stress.

Example: Shape memory alloys can return to their original shape after deformation when heated, displaying complex elastic behavior.

Advanced Friction Concepts

  1. Nanoscale Friction: Friction behaves differently at the nanoscale, often not following macroscopic laws.
  2. Superlubricity: Under certain conditions, friction can become nearly zero between two surfaces.
  3. Stick-Slip Phenomenon: This explains many friction-related phenomena, from squeaking doors to earthquakes.

Vocabulary: Superlubricity is a regime of motion in which friction almost vanishes.

Current Research Areas

  1. Biomimetic Materials: Researchers are studying natural materials to develop synthetic materials with enhanced properties, including unique elastic and frictional characteristics.
  2. Quantum Friction: Exploring friction effects in quantum systems, including potential applications in quantum computing.
  3. Smart Materials: Developing materials that can change their elastic or frictional properties in response to external stimuli.
  4. Tribology in Extreme Conditions: Studying friction and wear in extreme environments, such as space or deep-sea applications.

Quote: "The most exciting phrase to hear in science, the one that heralds new discoveries, is not 'Eureka!' but 'That's funny...'" - Isaac Asimov

Interdisciplinary Applications

  1. Nanotechnology: Understanding forces at the nanoscale is crucial for developing nanotechnology applications.
  2. Bioengineering: Elastic properties of tissues and friction in joints are important in developing medical implants and treatments.
  3. Geophysics: Advanced understanding of friction is crucial in studying earthquakes and tectonic plate movements.
  4. Clean Energy: Reducing friction in various systems can significantly improve energy efficiency.

Example: Research into low-friction coatings for wind turbine bearings could significantly increase their efficiency and lifespan.

Computational Advances

  1. Molecular Dynamics Simulations: Allow for detailed modeling of material behavior at the atomic level.
  2. Machine Learning: Being applied to predict material properties and behavior under various conditions.
  3. Quantum Computations: May provide new insights into fundamental force interactions.

Highlight: Advanced computational methods are enabling researchers to model and predict complex force interactions that were previously impossible to study.

These advanced concepts and current research areas demonstrate that our understanding of fundamental forces is far from complete. They represent exciting frontiers in physics and engineering, with potential applications that could revolutionize various fields, from energy production to medical treatments. As technology advances, our ability to study and manipulate these forces at ever-smaller scales and in more complex systems continues to grow, promising new discoveries and innovations in the future.

FORZA-PESO Fp= FORZA-PESO m-MASSA 9 COSTANTE GRAVITASIONALE 4 97 9,81 units di misora FORMULE INVERSE g== (1/1) Fp= m. g (K₂) (N. NIKO perch

Practical Applications and Engineering Challenges

This section focuses on the practical applications of our understanding of weight force, elastic force, static friction, and dynamic friction in various engineering fields. It also discusses the challenges engineers face when dealing with these forces in real-world scenarios.

Aerospace Engineering Applications:

  1. Aircraft Design: Balancing weight, lift, and drag forces for optimal performance.
  2. Spacecraft Materials: Developing materials that can withstand extreme forces during launch and re-entry.
  3. Satellite Technology: Designing systems that can operate in zero-gravity environments.

Challenges:

  1. Weight Reduction: Constantly seeking ways to reduce weight without compromising structural integrity.
  2. Friction in Space: Developing lubricants that work in the vacuum of space.

Example: The development of carbon fiber composites has revolutionized aerospace engineering by providing high strength-to-weight ratios.

Automotive Engineering Applications:

  1. Suspension Systems: Utilizing elastic forces for a smooth ride.
  2. Brake Design: Optimizing friction for effective stopping power.
  3. Tire Technology: Balancing friction for grip with low rolling resistance for fuel efficiency.

Challenges:

  1. Energy Efficiency: Reducing weight and friction to improve fuel economy.
  2. Safety: Designing crumple zones that effectively absorb impact forces.

Highlight: Advanced tire compounds can change their frictional properties based on temperature and road conditions.

Civil Engineering Applications:

  1. Earthquake-Resistant Structures: Designing buildings that can withstand seismic forces.
  2. Bridge Design: Accounting for dynamic loads and thermal expansion.
  3. Geotechnical Engineering: Understanding soil mechanics and friction for foundation design.

Challenges:

  1. Long-Term Structural Integrity: Ensuring structures can withstand forces over decades or centuries.
  2. Environmental Forces: Designing for extreme weather events and changing climate conditions.

Vocabulary: Seismic isolation involves designing a structure to reduce the effects of earthquake ground motion.

Biomedical Engineering Applications:

  1. Prosthetics: Designing artificial limbs that mimic natural biomechanics.
  2. Surgical Instruments: Developing tools with optimal frictional properties for precise control.
  3. Implant Materials: Creating biocompatible materials with appropriate elastic properties.

Challenges:

  1. Biocompatibility: Ensuring materials interact safely with the human body.
  2. Wear Resistance: Developing implants that can withstand years of use without degradation.

Quote: "The greatest challenge to any thinker is stating the problem in a way that will allow a solution." - Bertrand Russell

Nanotechnology Applications:

  1. Nanoelectromechanical Systems (NEMS): Developing tiny machines where surface forces dominate.
  2. Nanomaterials: Creating materials with unique properties by manipulating forces at the atomic scale.
  3. Nanocoatings: Developing ultra-thin coatings to modify surface properties.

Challenges:

  1. Scaling Effects: Understanding how forces behave differently at the nanoscale.
  2. Measurement and Control: Developing tools to accurately measure and manipulate at nanoscale.

Example: Gecko-inspired adhesives use van der Waals forces to create strong, reversible adhesion without traditional sticky substances.

Energy Sector Applications:

  1. Wind Turbines: Optimizing blade design for lift and minimizing friction in bearings.
  2. Hydroelectric Dams: Managing enormous forces of water for power generation.
  3. Fracking Technology: Understanding fluid dynamics and rock mechanics.

Challenges:

  1. Wear and Tear: Developing materials that can withstand constant forces in harsh environments.
  2. Efficiency: Minimizing energy losses due to friction and other forces.

Highlight: Advanced lubricants and coatings can significantly increase the efficiency and lifespan of energy-generating equipment.

Robotics Applications:

  1. Gripper Design: Creating end effectors with appropriate frictional properties for various tasks.
  2. Locomotion: Developing walking, climbing, or flying robots that can navigate various terrains.
  3. Soft Robotics: Utilizing elastic materials for flexible and adaptable robot designs.

Challenges:

  1. Adaptability: Designing robots that can adjust to different surface conditions and force requirements.
  2. Energy Efficiency: Minimizing energy consumption in movement and force application.

Example: Boston Dynamics' robots demonstrate advanced control of forces for dynamic movement and balance.

These practical applications and challenges demonstrate the crucial role that understanding forces plays in modern engineering. As technology advances, engineers continually push the boundaries of what's possible, finding new ways to harness and control these fundamental forces. The interdisciplinary nature of these challenges often leads to innovative solutions that can have wide-ranging impacts across multiple fields.

Contenuti simili

Fisica - il lavoro e l’energia

lavoro, energia cinetica, lavoro di una forza variabile, lavoro della forza elastica, potenza, forze conservative, energia potenziale, energia meccanica, lavoro di forze non conservative.

143

4403

0

Know il lavoro e l’energia thumbnail

Non c'è niente di adatto? Esplorare altre aree tematiche.

Knowunity è l'app per l'istruzione numero 1 in cinque paesi europei

Knowunity è stata inserita in un articolo di Apple ed è costantemente in cima alle classifiche degli app store nella categoria istruzione in Germania, Italia, Polonia, Svizzera e Regno Unito. Unisciti a Knowunity oggi stesso e aiuta milioni di studenti in tutto il mondo.

Ranked #1 Education App

Scarica

Google Play

Scarica

App Store

Knowunity è l'app per l'istruzione numero 1 in cinque paesi europei

4.9+

Valutazione media dell'app

13 M

Studenti che usano Knowunity

#1

Nelle classifiche delle app per l'istruzione in 12 Paesi

950 K+

Studenti che hanno caricato appunti

Non siete ancora sicuri? Guarda cosa dicono gli altri studenti...

Utente iOS

Adoro questa applicazione [...] consiglio Knowunity a tutti!!! Sono passato da un 5 a una 8 con questa app

Stefano S, utente iOS

L'applicazione è molto semplice e ben progettata. Finora ho sempre trovato quello che stavo cercando

Susanna, utente iOS

Adoro questa app ❤️, la uso praticamente sempre quando studio.
