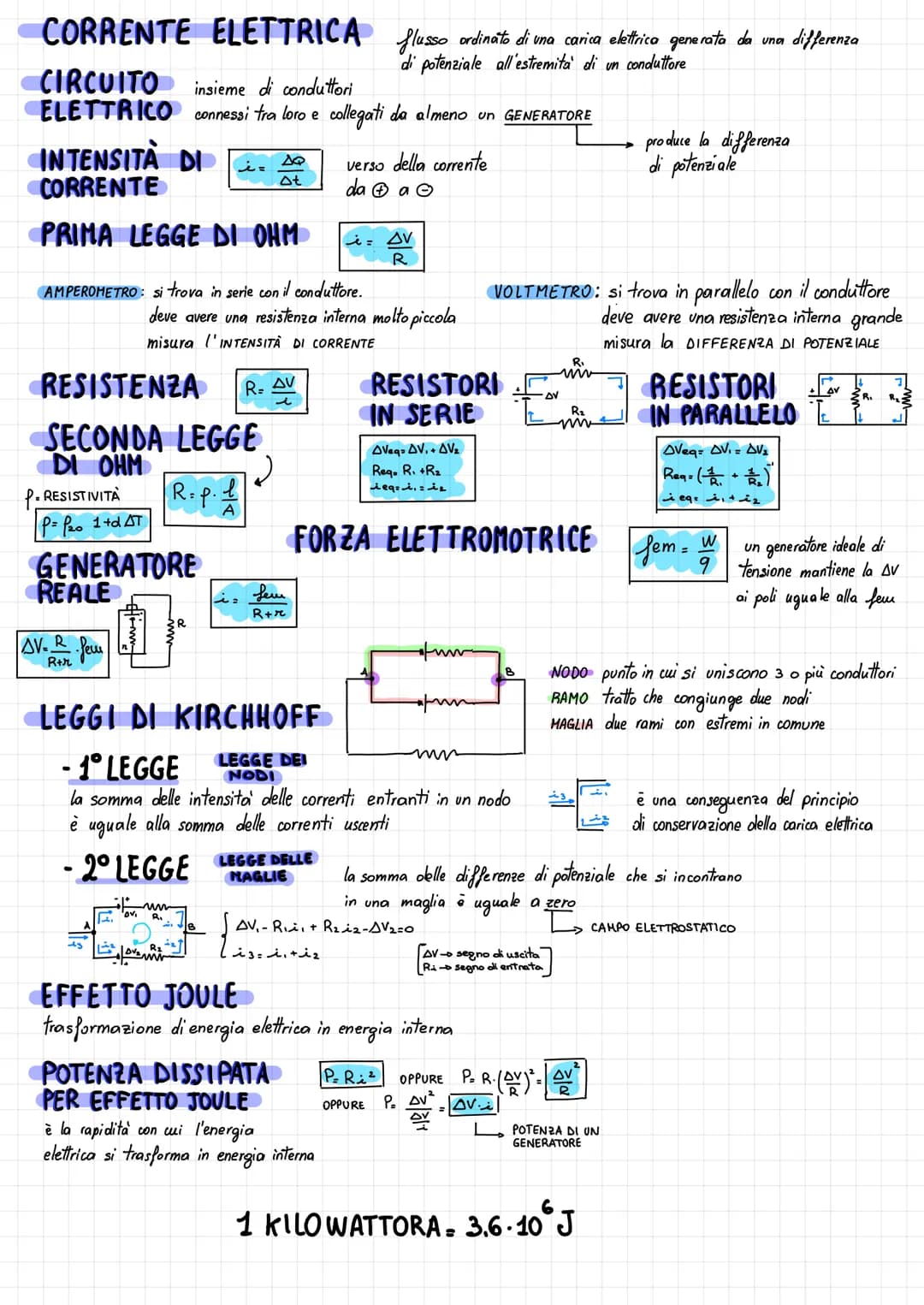

This section delves into electric current, circuit components, and fundamental laws governing circuit behavior. It introduces Ohm's Laws and Kirchhoff's Laws for circuit analysis.

Definition: Electric current is the ordered flow of electric charge generated by a potential difference across a conductor.

Highlight: Kirchhoff's Laws are fundamental principles for analyzing complex circuits - the Current Law (KCL) and Voltage Law (KVL).

Example: In a series circuit with two resistors R₁ and R₂, the equivalent resistance is Req = R₁ + R₂.

Quote: "The sum of currents entering a node equals the sum of currents leaving it" - Kirchhoff's Current Law.

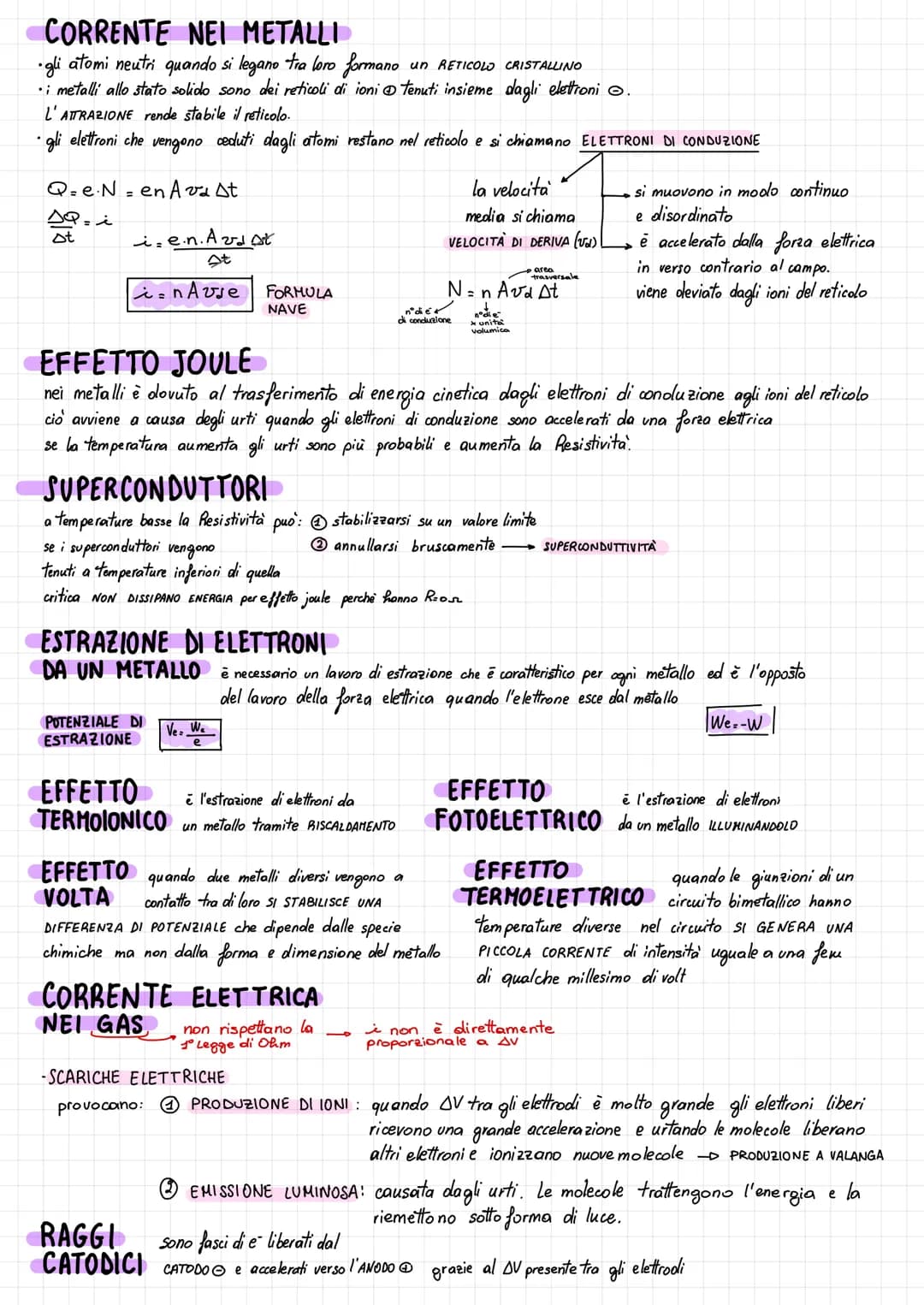

The final section explores how electrical conduction occurs in different materials, focusing on metals and introducing concepts like superconductivity.

Definition: Conduction electrons are free electrons in metals that can move through the crystal lattice and carry electric current.

Vocabulary: Drift velocity refers to the average velocity of electrons moving through a conductor under an applied electric field.

Highlight: Superconductors exhibit zero electrical resistance below a critical temperature, enabling lossless current flow.

Example: In metals, the crystal lattice of positive ions is held together by the electrostatic attraction of shared conduction electrons.

The third page explores the behavior of electric current in metals, including the crystal structure and electron movement mechanisms.

Definition: Conduction electrons are those that have been freed from their atoms and can move through the metal lattice.

Vocabulary: Drift velocity refers to the average velocity of electrons moving through a conductor.

Highlight: Superconductors exhibit zero resistance below their critical temperature, enabling lossless current flow.

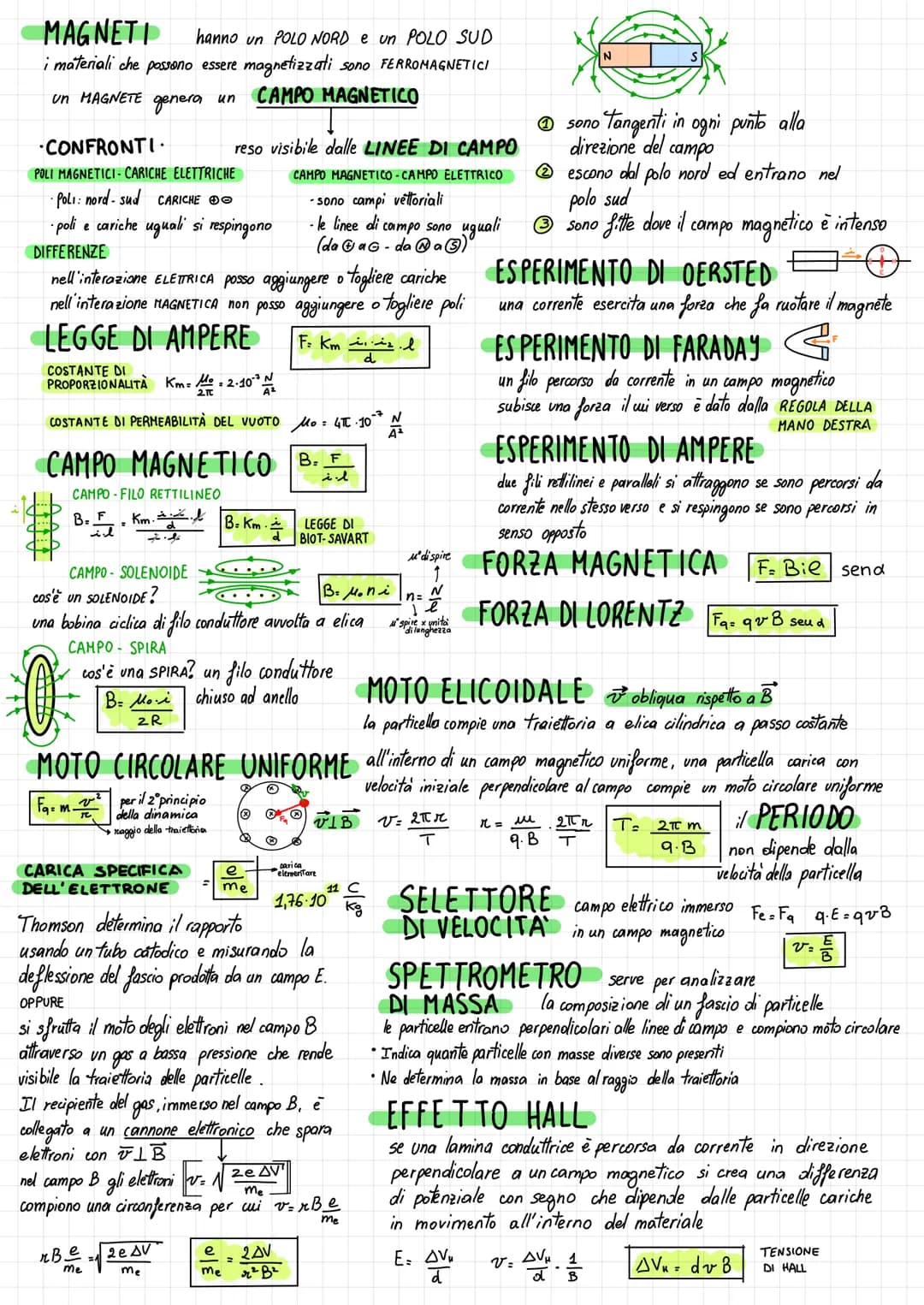

This page covers the fundamentals of magnetism, including magnetic poles, fields, and their interactions with electric currents.

Definition: A solenoid is a helical coil of conducting wire that produces a uniform magnetic field when current flows through it.

Example: The magnetic field strength around a straight current-carrying wire follows B = (μ₀I)/(2πr).

Highlight: Unlike electric charges, magnetic poles cannot be isolated - they always exist in pairs.

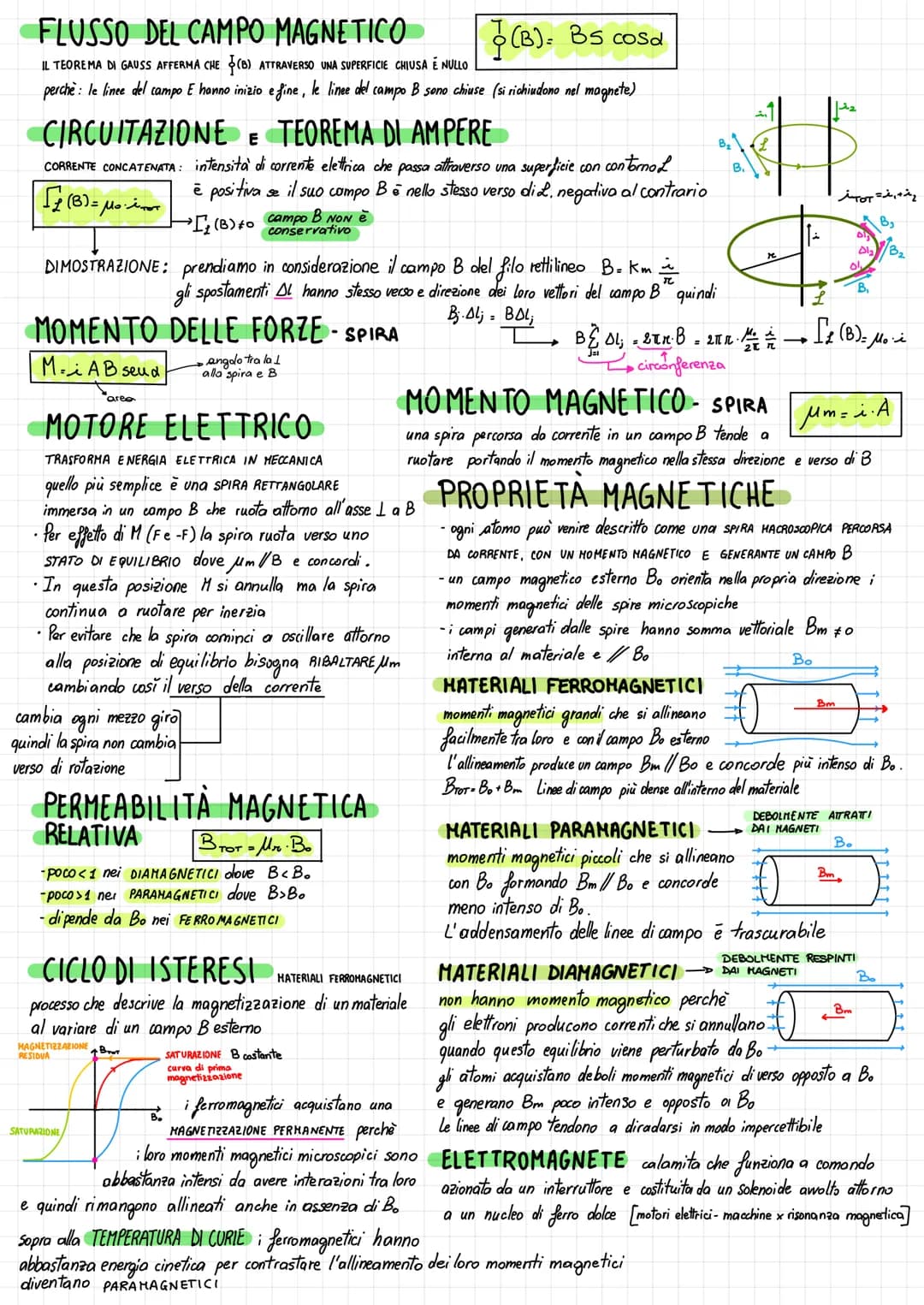

The fifth page discusses magnetic flux and Ampère's Law, including their applications in electromagnetic theory.

Definition: Magnetic flux is the measure of the total magnetic field passing through a given surface.

Highlight: Gauss's law for magnetism states that the net magnetic flux through any closed surface is zero.

Example: The circulation of magnetic field B around a current-carrying wire is given by ∮B·dl = μ₀I.

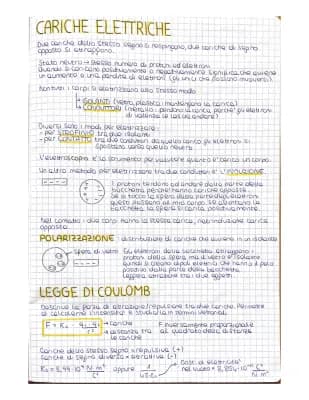

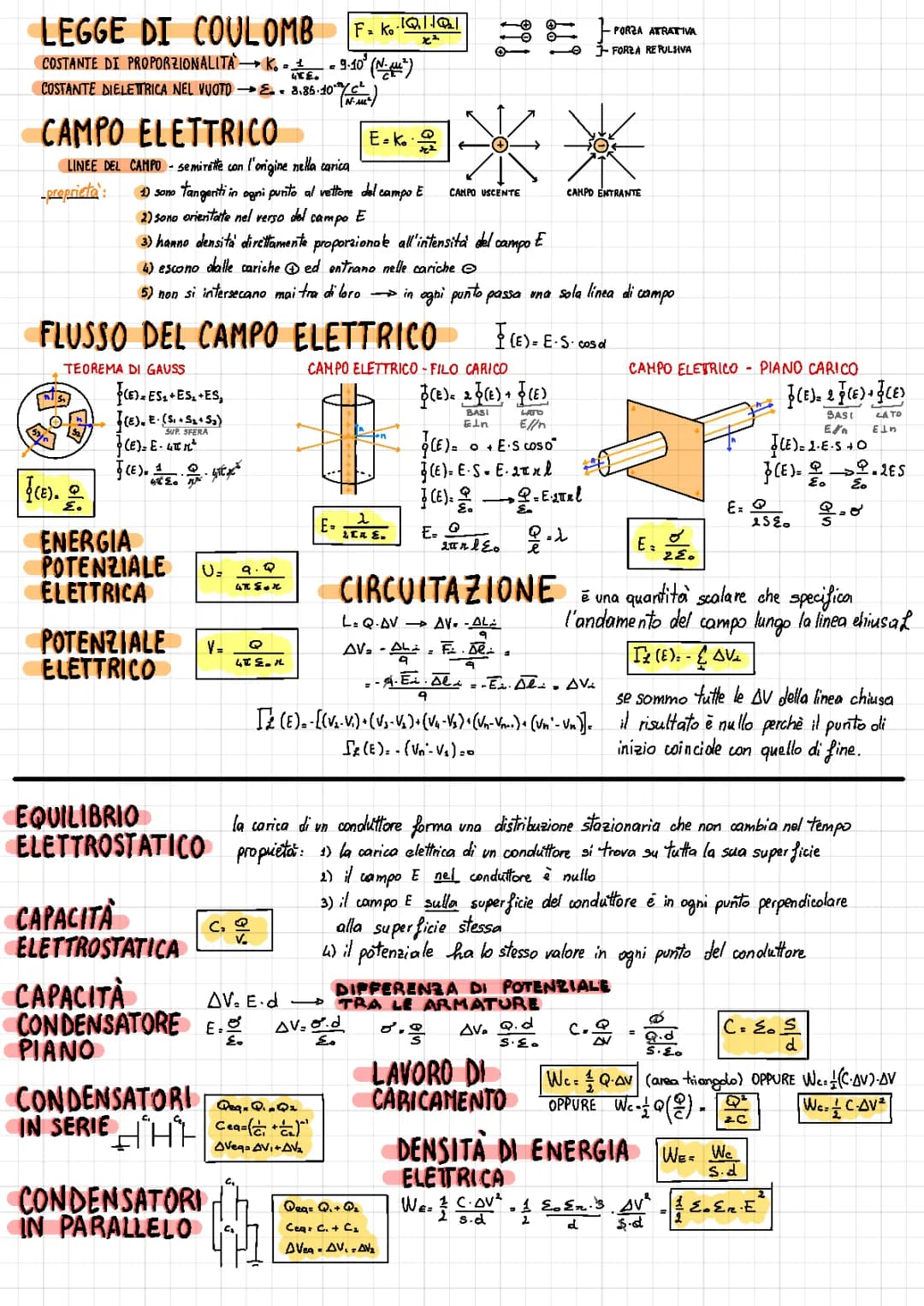

This page covers core concepts in electrostatics, beginning with Coulomb's Law and extending to electric fields and potential. The material explains field properties, Gauss's theorem, and capacitor configurations.

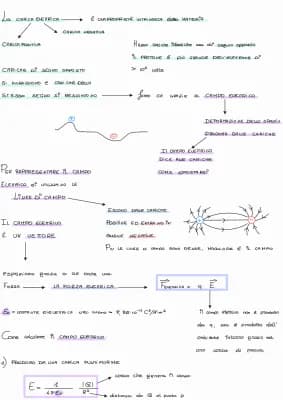

Definition: Electric field lines are directional lines showing the path a positive test charge would follow in an electric field.

Highlight: Electric field lines never intersect, as this would indicate multiple force directions at a single point, which is physically impossible.

Example: For parallel plate capacitors, the electric field is uniform between plates and can be calculated using E = V/d where V is voltage and d is plate separation.

Vocabulary: Electrostatic equilibrium refers to the state where charges are stationary and the electric field inside a conductor is zero.
