Impara le reazioni vincolari e la forza elastica: esempi e formule facili per tutti

The document explains fundamental concepts in physics, focusing on forces, weight, mass, and their interactions. It covers reazione vincolare formula, elastic forces, and friction, providing detailed explanations and examples for each concept.

Key points:

Weight is a vector quantity, while mass is scalar
Vincular reactions are forces that limit object movement
Elastic forces follow Hooke's Law
Friction opposes motion between surfaces

The content is suitable for high school physics students, offering clear explanations and practical examples to reinforce understanding of these crucial physics principles.

08/03/2023

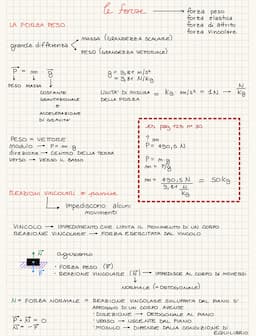

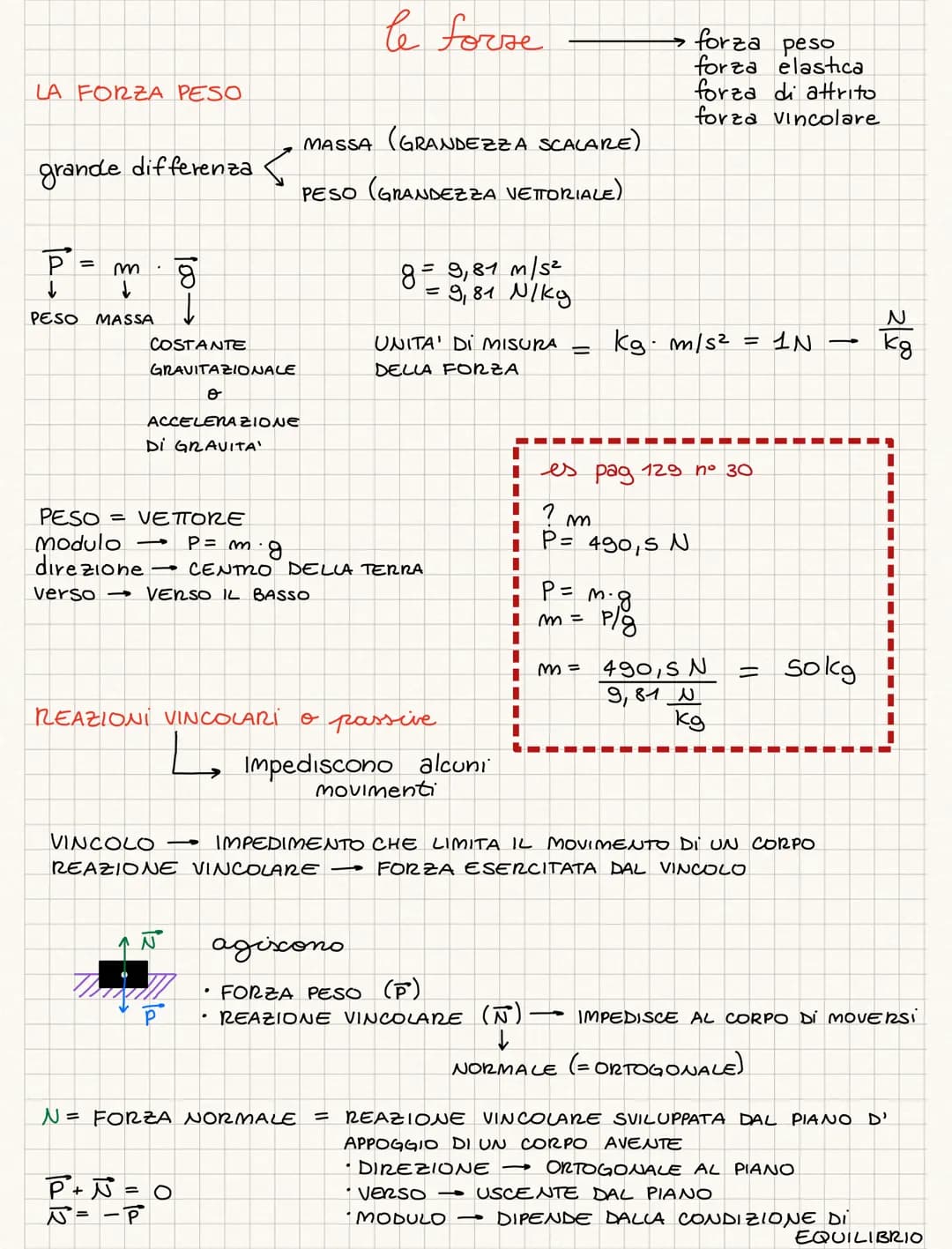

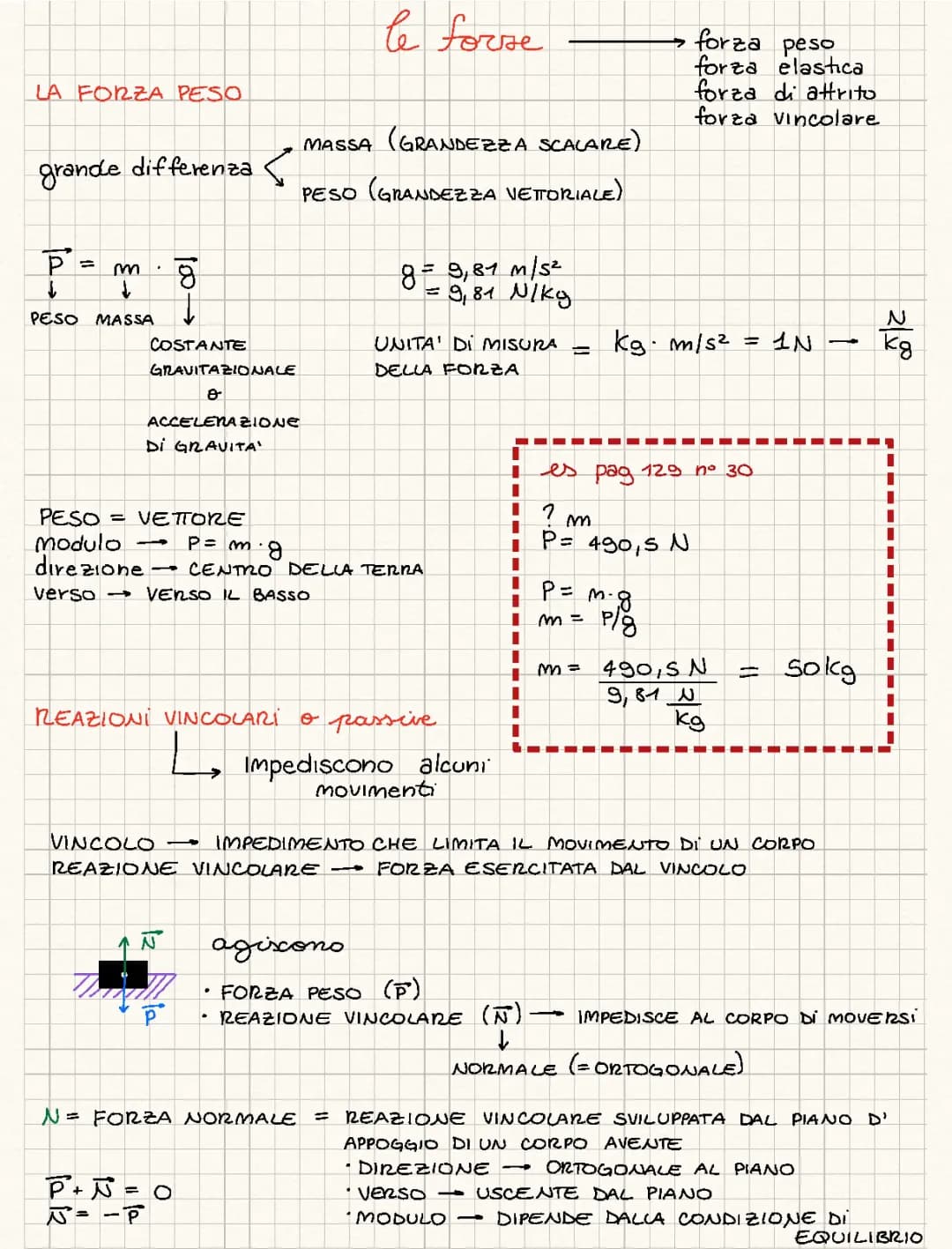

LA FORZA PESO
grande differenza
P = m. g
↓
↓
↓
PESO MASSA
COSTANTE
verso-
GRAVITAZIONALE
e
ACCELERAZIONE
Di GRAVITA'
PESO VETTORE
modulo
dir

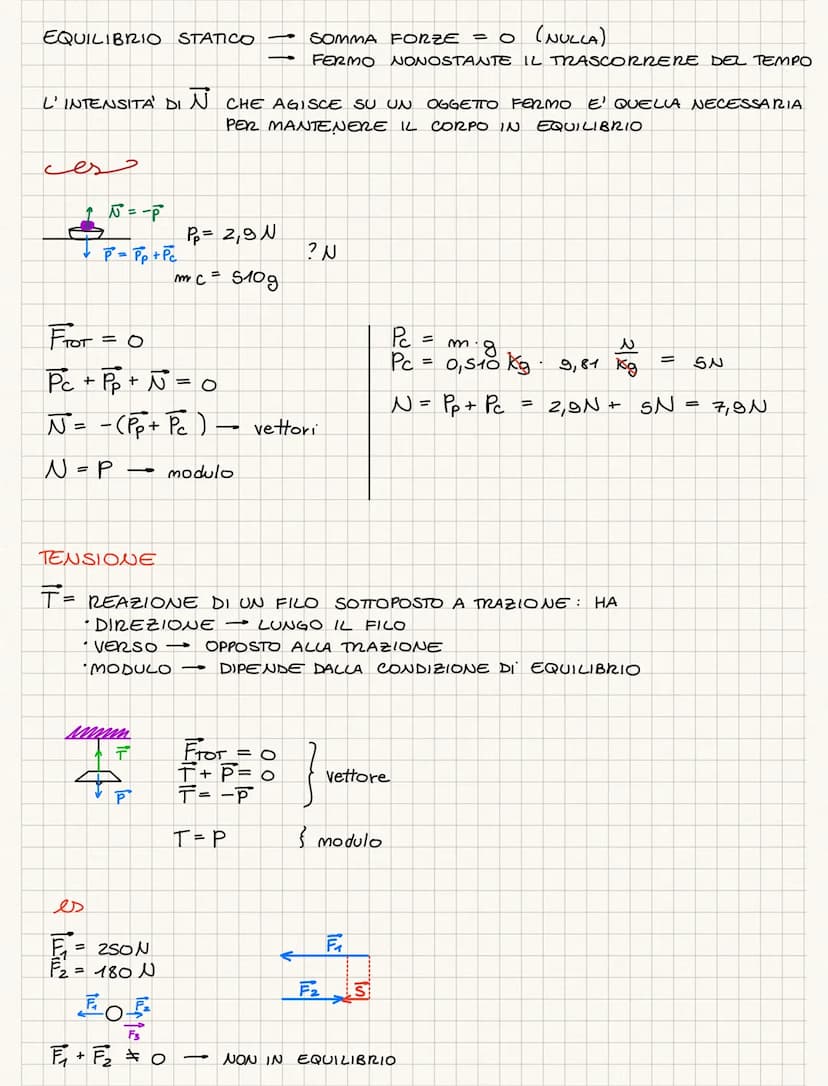

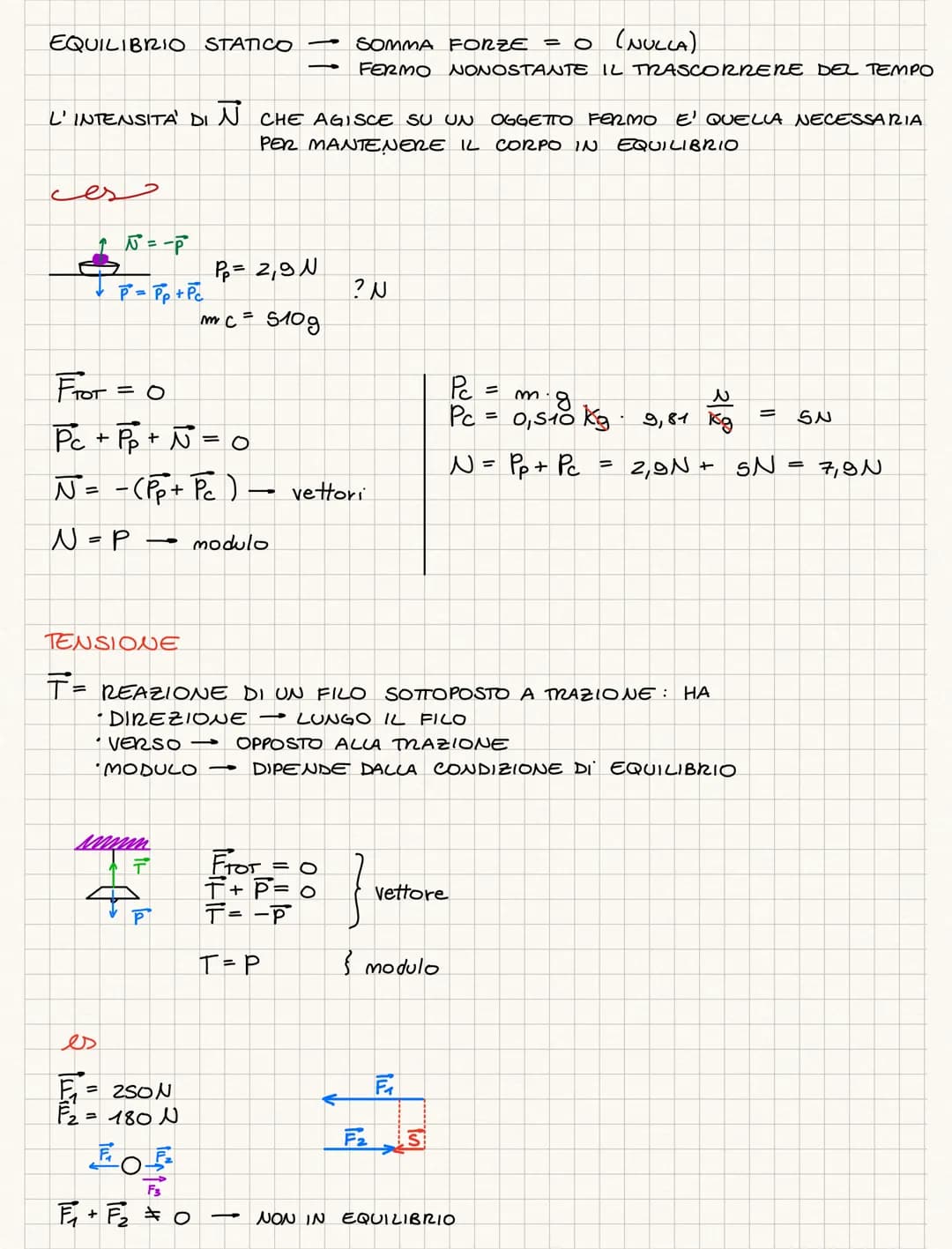

Equilibrium and Tension Forces

This page delves deeper into the concepts of equilibrium and introduces tension forces, particularly in the context of objects suspended by ropes or cables.

Static equilibrium is defined as a state where the sum of all forces acting on an object is zero. This principle is crucial for understanding how objects remain at rest despite various forces acting upon them.

Definition: Static equilibrium occurs when the sum of all forces acting on an object is zero, resulting in no acceleration.

The page introduces the concept of tension in ropes or cables, explaining that tension is a force that acts along the length of the rope in a direction opposite to the applied force.

Vocabulary: Tension - A force that acts along a rope or cable, always pulling or "tensing" the object attached to it.

Several examples are provided to illustrate how to calculate tension forces and normal forces in equilibrium situations. These examples help reinforce the application of equilibrium principles in real-world scenarios.

Example: For an object suspended by a rope, the tension in the rope (T) is equal in magnitude to the weight of the object (P), but acts in the opposite direction: T = -P.

The page also covers more complex situations involving multiple forces, demonstrating how to solve problems by applying the principle of equilibrium to find unknown forces.

Highlight: Understanding tension forces is crucial for solving problems involving reazione vincolare piano orizzontale and formula tensione fune.

Vedi

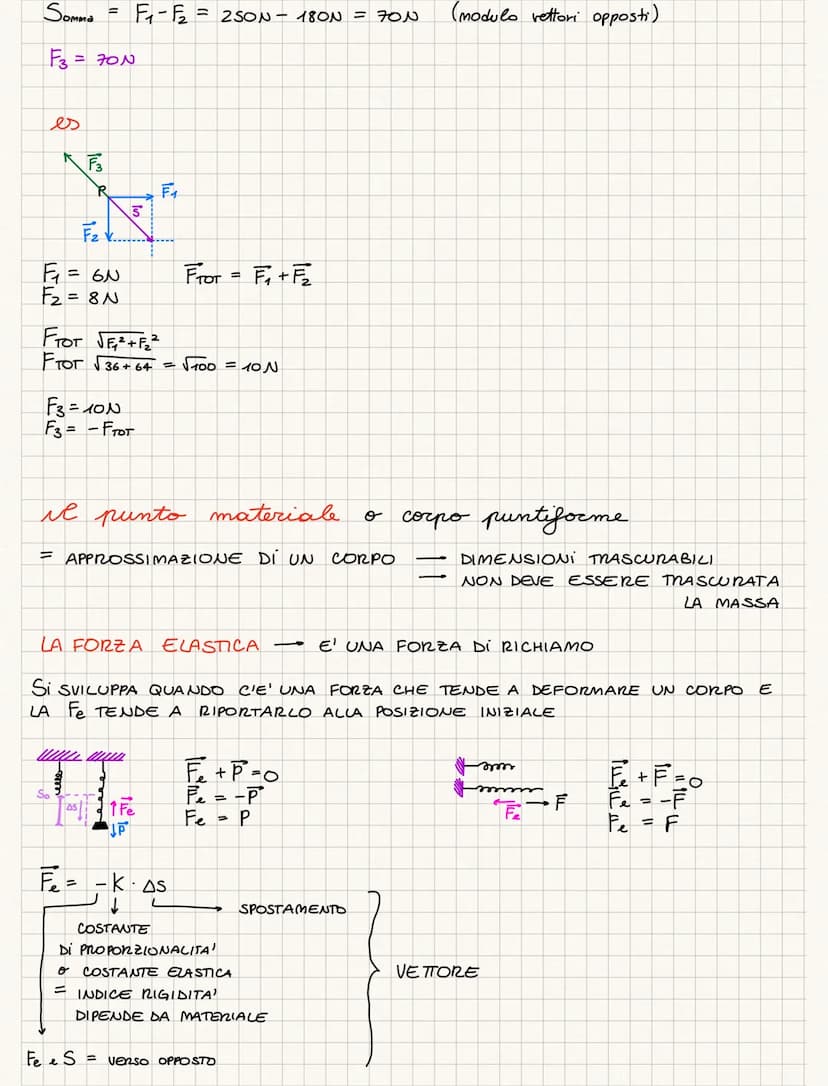

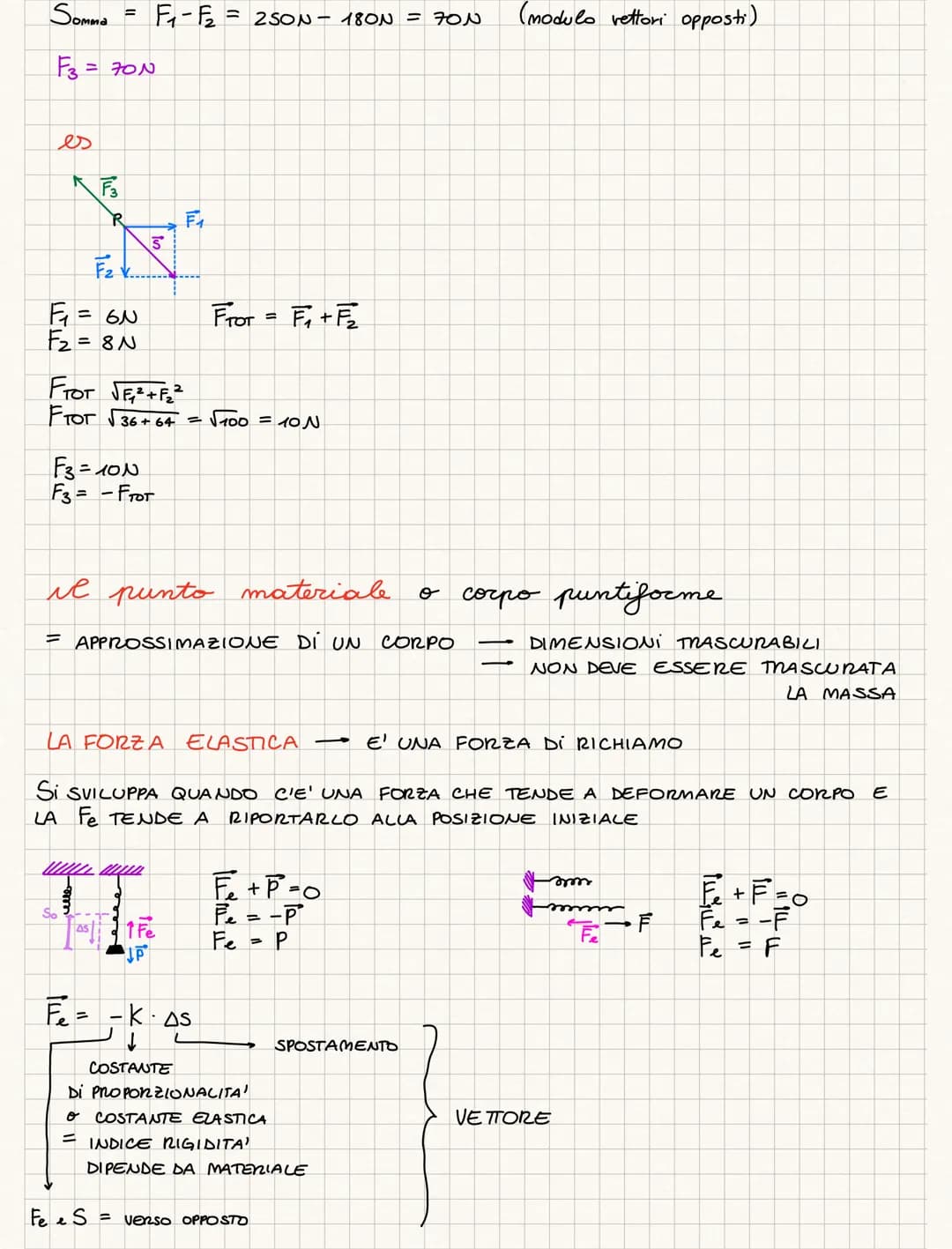

Vector Addition and Elastic Forces

This page focuses on vector addition and introduces the concept of elastic forces, particularly in the context of springs.

The page begins with an example of vector addition, demonstrating how to calculate the resultant force when multiple forces act on an object. This is crucial for understanding more complex force interactions.

Example: Given three forces F₁ = 6N, F₂ = 8N, and F₃ = 70N, the total force is calculated using vector addition: FTOT = √(F₁² + F₂²) = √(36 + 64) = 10N.

The concept of elastic force is then introduced, defined as a restoring force that develops when an object is deformed and tends to return it to its original position.

Definition: Elastic force is a restoring force that opposes deformation and attempts to return an object to its original shape or position.

Hooke's Law is presented as the fundamental principle governing elastic forces. The law states that the force exerted by a spring is directly proportional to its displacement from equilibrium.

Vocabulary: Hooke's Law - A principle stating that the force (F) exerted by a spring is proportional to its displacement (Δs) from equilibrium, expressed as F = -k · Δs.

The page also introduces the concept of a point particle, which is an approximation used in physics to simplify calculations involving objects with negligible dimensions but non-negligible mass.

Highlight: Understanding elastic forces is crucial for solving problems involving forza elastica esercizi svolti pdf and legge di Hooke esercizi svolti pdf.

Vedi

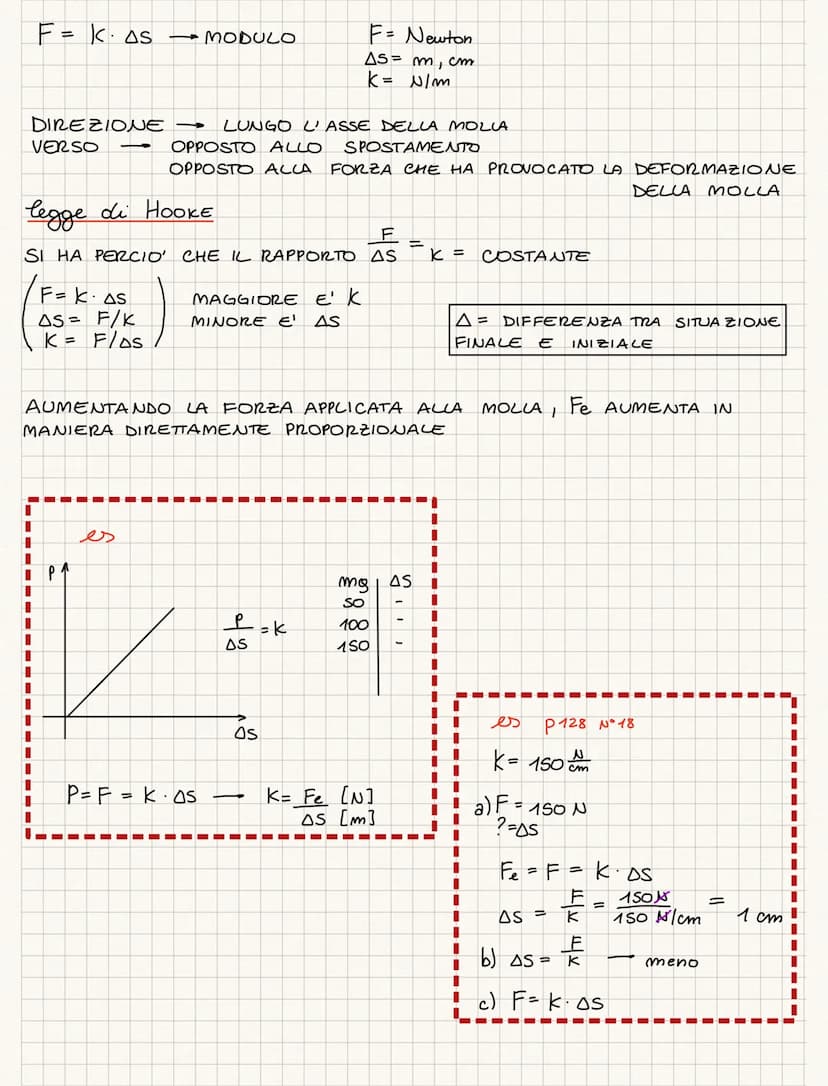

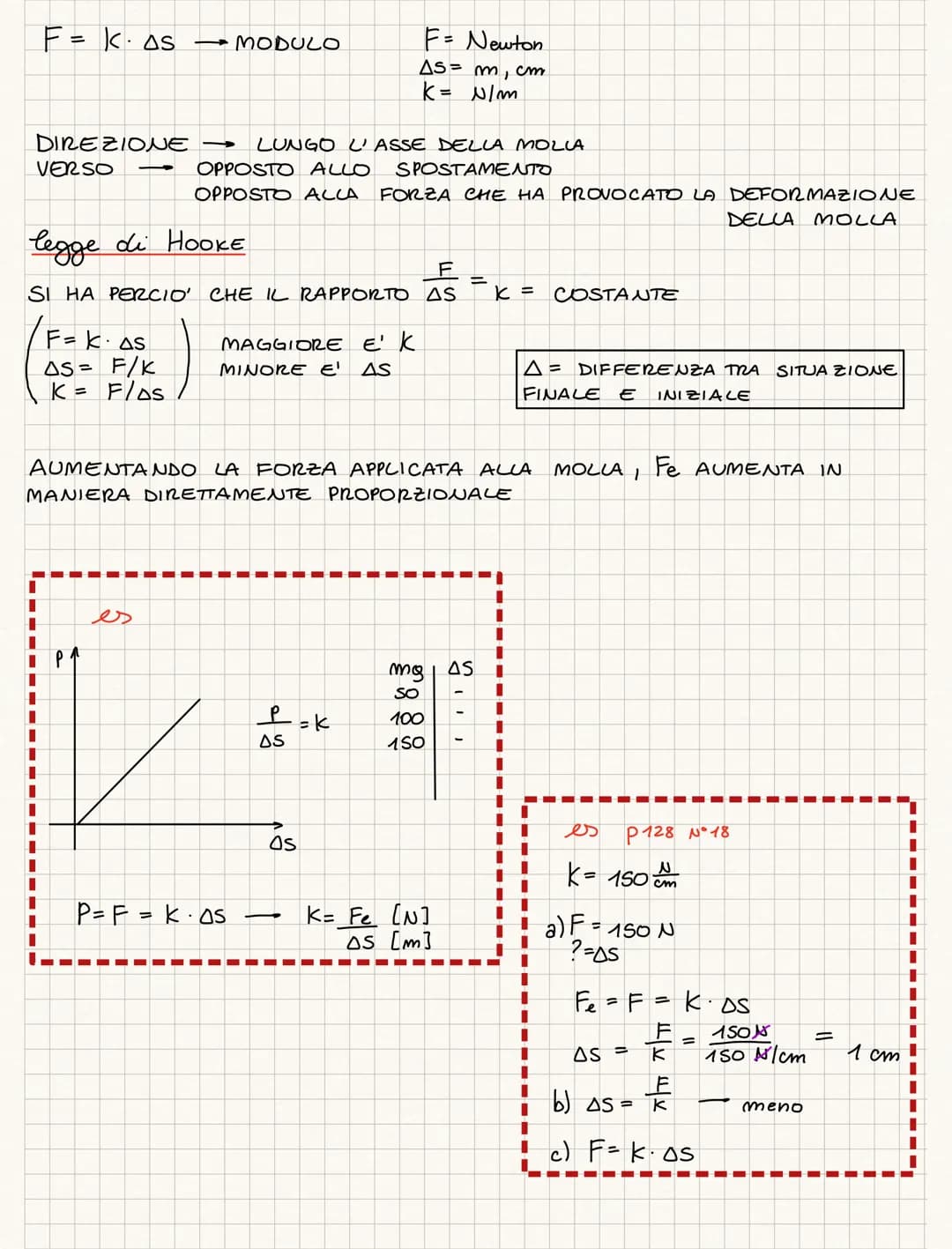

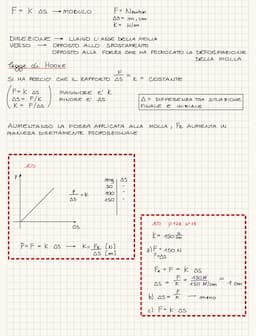

Hooke's Law and Spring Constant

This page delves deeper into Hooke's Law and the concept of spring constant, providing a more detailed understanding of elastic forces.

The page begins by presenting the full formula for Hooke's Law: F = -k · Δs, where F is the force, k is the spring constant, and Δs is the displacement from equilibrium.

Definition: The spring constant (k) is a measure of a spring's stiffness, indicating how much force is required to extend or compress the spring by a given distance.

The direction and orientation of the elastic force are explained, emphasizing that it always acts along the axis of the spring and in the opposite direction of the displacement.

Highlight: The elastic force always opposes the force causing the deformation, which is crucial for understanding forza elastica e attrito interactions.

The page provides examples of how to use Hooke's Law to calculate various parameters, such as force, displacement, or spring constant, given the other two variables.

Example: If a spring with a constant k = 150 N/cm is stretched by 1 cm, the force exerted by the spring is F = k · Δs = 150 N/cm · 1 cm = 150 N.

The relationship between force and displacement is illustrated graphically, showing that they are directly proportional. This visual representation helps reinforce the concept of linear elasticity.

Vocabulary: Linear elasticity - The property of a material to deform in direct proportion to the applied force, following Hooke's Law.

Vedi

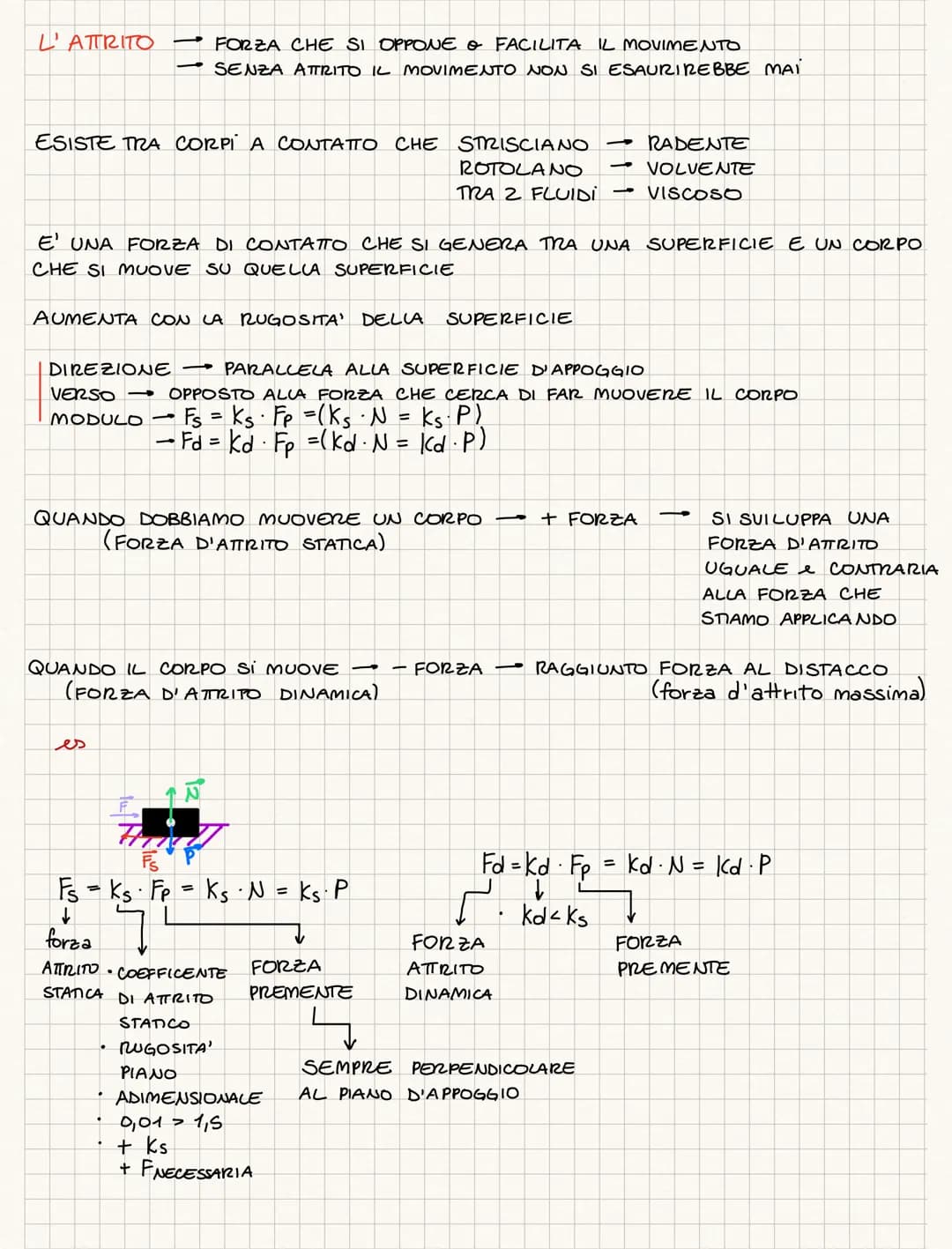

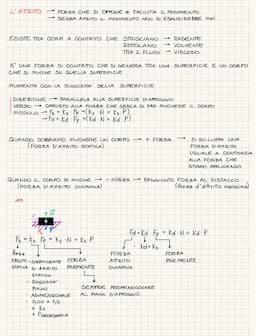

Friction Forces

This page introduces the concept of friction forces, their types, and how they affect the motion of objects.

Friction is defined as a force that opposes or facilitates movement between objects in contact. The page emphasizes that friction is essential for many everyday activities and that without it, motion would never cease.

Definition: Friction is a contact force generated between a surface and an object moving on that surface, opposing the relative motion between the two surfaces.

The page categorizes friction into three main types: sliding friction, rolling friction, and fluid friction. Each type is briefly explained, highlighting their different characteristics and applications.

Vocabulary:

Sliding friction: Force opposing the motion of one solid surface sliding over another.

Rolling friction: Force resisting the motion of a rolling object.

Fluid friction: Force opposing the motion of an object through a fluid.

The direction, orientation, and magnitude of friction forces are discussed, noting that friction always acts parallel to the contact surface and opposite to the direction of motion or impending motion.

Highlight: Understanding friction is crucial for solving problems involving forza di attrito esercizi svolti pdf and esercizi forza elastica e attrito.

The page introduces the formulas for static and kinetic friction: Fs = μs · N and Fk = μk · N, where μs and μk are the coefficients of static and kinetic friction, respectively, and N is the normal force.

Example: If a 50 kg object rests on a surface with a coefficient of static friction μs = 0.6, the maximum static friction force before the object begins to move is Fs = μs · mg = 0.6 · 50 kg · 9.81 m/s² ≈ 294.3 N.

Vedi

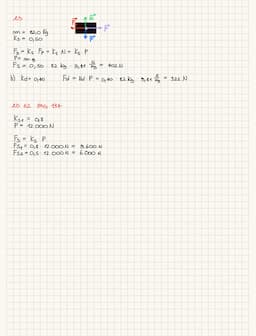

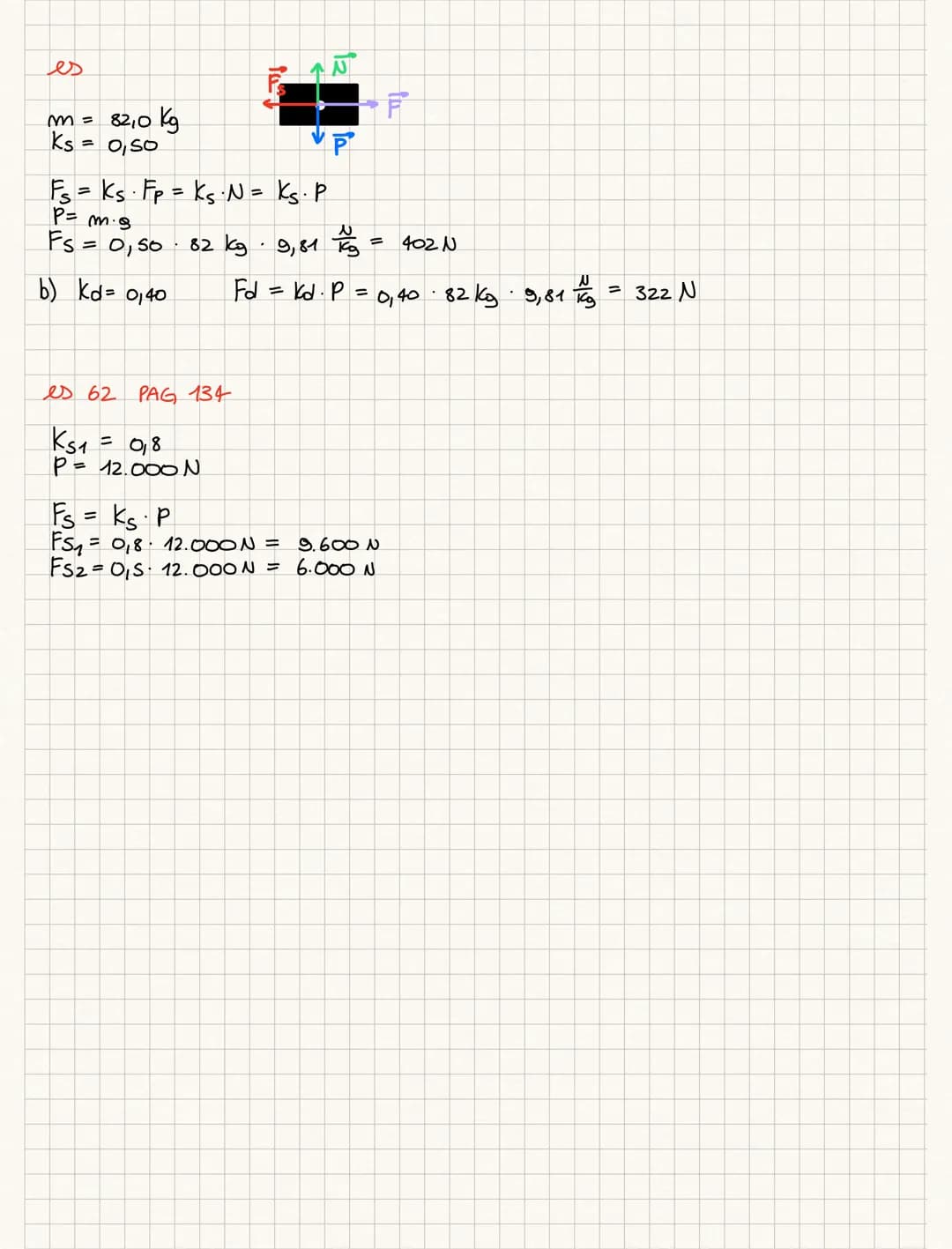

Friction Problems and Applications

This page provides practical examples and problem-solving techniques for friction-related scenarios, reinforcing the concepts introduced in the previous section.

The page begins with an example problem involving static and kinetic friction, demonstrating how to calculate friction forces for an object on a horizontal surface.

Example: For an 82.0 kg object on a surface with static friction coefficient μs = 0.50 and kinetic friction coefficient μk = 0.40, the maximum static friction force is Fs = μs · mg = 0.50 · 82.0 kg · 9.81 m/s² ≈ 402 N, while the kinetic friction force is Fk = μk · mg = 0.40 · 82.0 kg · 9.81 m/s² ≈ 322 N.

The page emphasizes the difference between static and kinetic friction, noting that static friction is typically greater than kinetic friction for the same surfaces.

Highlight: Understanding the difference between static and kinetic friction is crucial for solving esercizi sulle forze fisica prima liceo con soluzioni.

Another example problem is presented, involving friction on an inclined plane. This problem demonstrates how to decompose forces and apply friction concepts in more complex scenarios.

Vocabulary: Inclined plane - A flat supporting surface tilted at an angle to the horizontal plane, often used in physics problems to introduce concepts of force decomposition.

The page concludes with a discussion on how friction coefficients can vary depending on the materials involved and environmental conditions, emphasizing the importance of considering these factors in real-world applications.

Definition: Coefficient of friction - A dimensionless scalar value that describes the ratio of the force of friction between two bodies and the force pressing them together.
